Stanko UFO 649 630 rpm
EUROPE (Western and Northern)
Longitudinal travel (X-axis): 10000 mm (2 tables together)
Cross travel (Y-axis): 2400 mm
Vertical travel (Z1): 1450 mm
Vertical travel (Z2): 630 mm
Table clamping area: 1250 x 9200 mm
Maximum workpiece height: 1600 mm
Maximum spindle power: 42 kW (moment 540 kpn)
Milling head type: Vertical + extras
Milling head taper: ISO 60
Quill travel (Z2): 630 mm
Boring head taper: ISO 60
Spindle speed range: 80–630 rpm
Machine length: 22850 mm
Machine depth: 5200 mm
Machine height: 6000 mm
Machine weight: 90000 kg
Maximum table load: 25 ton

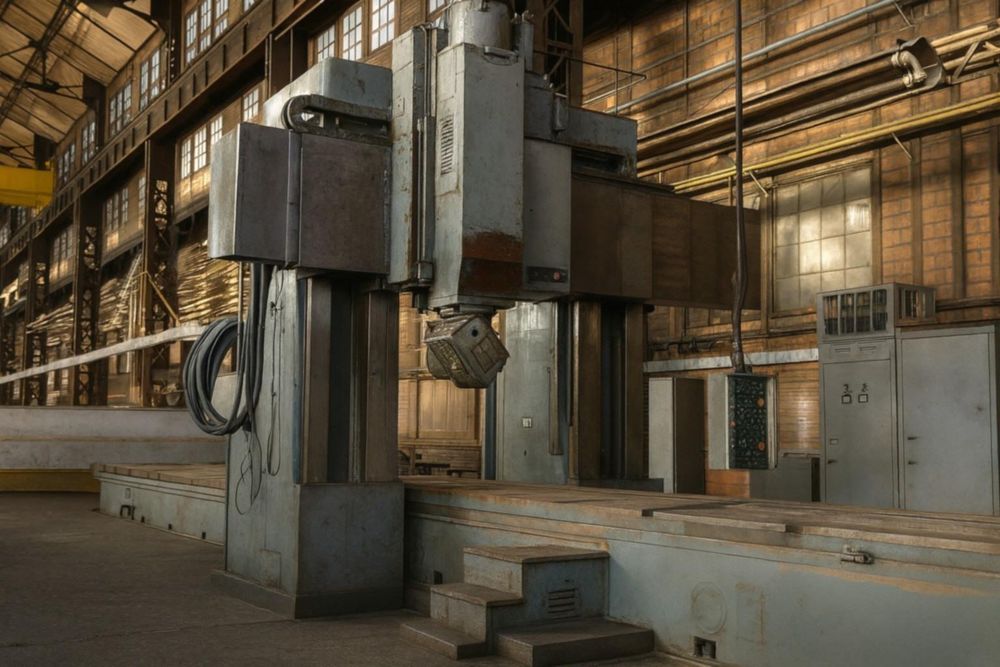

Portal bed milling machine with movable table
Two linked tables (10000 mm X-displacement)
Individual table travel: 4800 mm
Z1 bridge displacement: 1450 mm
Z2 ram head travel: 630 mm
Angle milling head 1 x 90° – 28 kW – ISO 50
Universal milling head 2 x 180° – 13 kW – ISO 50
Extended angle milling head 2 x 360° – 13 kW – ISO 50
Spindle extension: 650 mm
