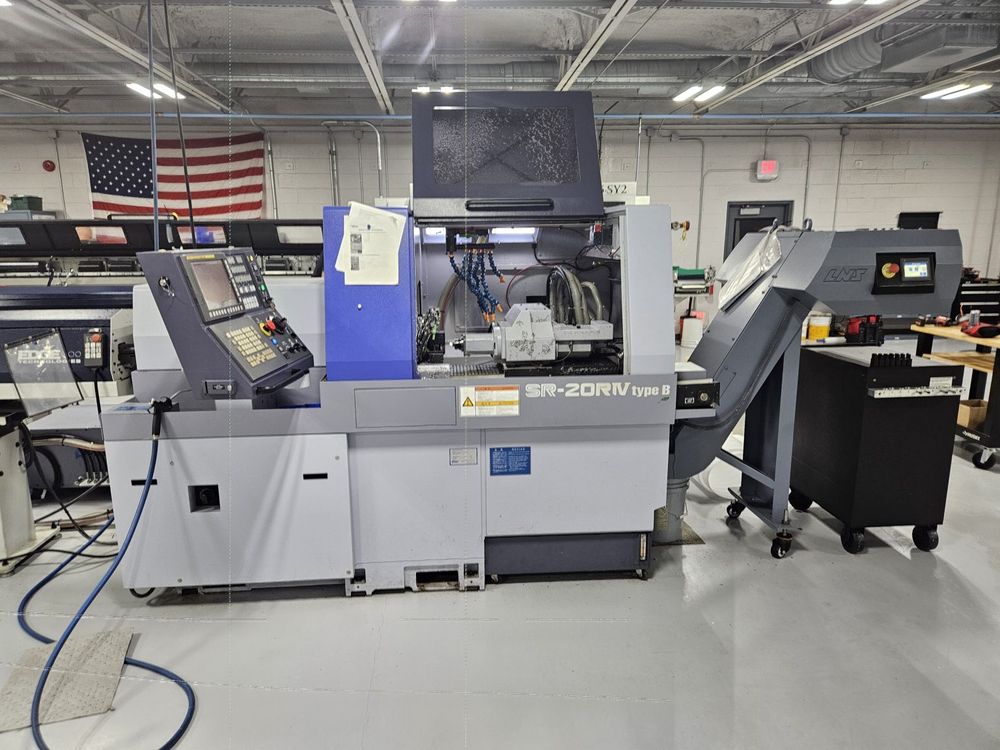

Star CNC control 10,000 rpm SR-20RIV Type B 2 Axis

X-axis rapid feed rate: 35 m/min
Y1-axis rapid feed rate: 35 m/min
Y2-axis rapid feed rate: 15 m/min
Z-axis rapid feed rate: 35 m/min
Main spindle indexing angle: C-axis control
Sub spindle indexing angle: C-axis control
Control: CNC control

Max machining diameter: 20 mm (25/32″)
Max headstock stroke (standard): 205 mm (8″)
Max headstock stroke (with RMGB): 160 mm (6-19/64″)
Max headstock stroke (non-guide bush): 50 mm (1-31/32″)

Main spindle speed: 10,000 rpm
Main spindle motor: 2.2 kW continuous / 3.7 kW (10 min, 25% ED)
Sub spindle speed: 10,000 rpm
Sub spindle motor: 2.2 kW continuous / 3.7 kW (10 min, 25% ED)

Front tool post: 5 tools (12 mm)
Rear tool post: 2 tools (12 mm)
4-spindle sleeve holder (front): 4 tools
4-spindle sleeve holder (rear): 4 tools
Max drilling capability (sleeve): 12 mm (1/2″)
Max tapping capability (sleeve): M10×P1.5
2-spindle front sleeve holder: 2 tools
Max drilling capability: 10 mm (25/64″)
Max depth of hole: 100 mm (3-15/16″)
Power-driven attachment (cross milling): 3 tools
Cartridge type: 2 positions
B-axis controlled power-driven tool unit: 1 position (3 front tools + 3 rear tools)
Max drilling capability: 10 mm (25/64″)
Max tapping capability: M8×P1.25
Power-driven spindle speed: 8,000 rpm
Power-driven drive motor: 2.2 kW

Backworking attachment max chucking diameter: 20 mm (25/32″)
Max length for front ejection: 80 mm (3-5/32″)
Max parts projection length: 30 mm (1-3/16″)
Back 8-spindle unit (stationary tools): 8
Back 8-spindle unit (power-driven tools): 8
Max drilling capability (stationary): 12 mm (1/2″)
Max tapping capability (stationary): M10×P1.5
Max drilling capability (power-driven): 6 mm (15/64″)
Max tapping capability (power-driven): M5×P0.8
Power-driven attachment spindle speed: 8,000 rpm
Power-driven attachment motor: 1.0 kW continuous / 1.2 kW (5 min, 30% ED)

Coolant tank capacity: 170 L
Power consumption: 4.7 kVA
Sound pressure level: max 74.5 dB
Dimensions (W×D×H): 2334 × 1200 × 1700 mm
Weight: 2600 kg

EDGE Technologies Minuteman 320SE bar feeder
1000 PSI high-pressure coolant system
Chip conveyor
Assorted tools
