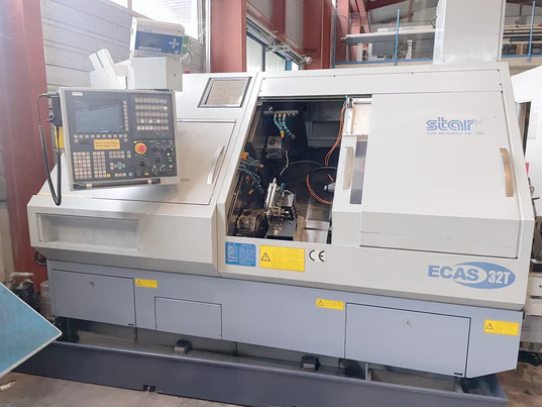

Star CNC CONTROL 7,000 t/min ECAS 32 T 4 Axis

Number of Axes: 4
Number of Spindles: 2
Turning Length: 350 mm
Max. Bar Diameter: 32 mm
Spindle Speeds: Stepless up to 7,000 t/min
C Axis Spindle: Yes
Back Spindle Speeds: Up to 7,000 t/min
Back Spindle C Axis: Yes
Upper Turret Tools: 10
Upper Turret Driven Tools: 2
Upper Turret Turning Tool Speeds: 5,700 t/min
Lower Turret Tools: 10
Lower Turret Driven Tools: 2
Lower Turret Turning Tool Speeds: 5,700 t/min
Voltage: 3×400 V 50 Hz
Spindle Motor: 7.5 kW
Back Spindle Motor: 3.7 kW
Total Power Required: 8 kVA
Machine Weight: 5,700 kg
Overall Dimensions: 3,175 × 1,745 × 1,860 mm

Workpiece Loader
Bar Loader
Set of Toolholders
Bar Feeder LNS Express 332 Max 4,000 mm
Chip Conveyor
Coolant System
