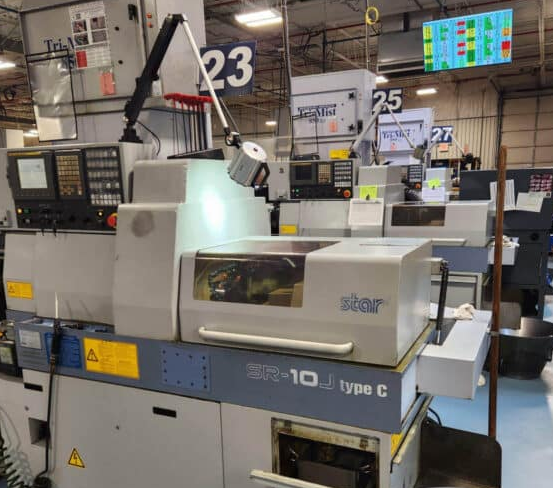

Star Fanuc Series 18i-TB 10,000 RPM SR-10J TYPE C 2 Axis

STAR SR-10J TYPE C
2007

Maximum machining diameter: ø10mm (25/64")
Maximum headstock stroke (stationary guide bushing): 135mm (5-5/16")
Maximum headstock stroke (revolving guide bushing): 105mm (4-9/64")
Number of turning tools: 6 (□8mm)
Number of sleeve holder tools (front): 4
Number of sleeve holder tools (rear): 4
Maximum drilling capability (sleeve holder): ø6mm (15/64")
Maximum tapping capability (sleeve holder): M5×P0.8
Number of power-driven attachments: 3
Maximum drilling capability (power-driven): ø4mm (5/32")
Maximum tapping capability (power-driven): M3×P0.5
Spindle speed: max. 10,000 RPM
Drive motor: 0.5 kW
Rapid feed rate (X,Y,Z,ZB,XB): 35 m/min
Main spindle indexing angle: C-axis control
Main spindle speed: max. 15,000 RPM
Main spindle motor: 2.2 kW (continuous) / 3.7 kW (15 min./60% ED)
Machine dimensions (W×D×H): 1,865 × 775 × 1,695 mm
Machine weight: 1,400 kg
Power consumption: 3.1 KVA
Backworking max. chucking diameter: ø10mm (25/64")
Backworking max. length for front ejection: 70mm (2-3/4")
Backworking max. work projection length: 20mm (25/32")
4-spindle backworking unit: 4 tools
Backworking max. drilling capability (stationary tool): ø4mm (5/32")
Backworking max. drilling capability (power-driven): ø4mm (5/32")
Backworking max. tapping capability (stationary tool): M3×P0.5
Backworking max. tapping capability (power-driven): M3×P0.5
Sub spindle indexing angle: C-axis control
Sub spindle speed: max. 10,000 RPM
Sub spindle motor: 0.55 kW (continuous) / 1.1 kW (15 min./50% ED)
Control: Fanuc Series 18i-TB
Barfeed: LNS Hydrobar
Mist collector: Tri-Mist 850 G2
