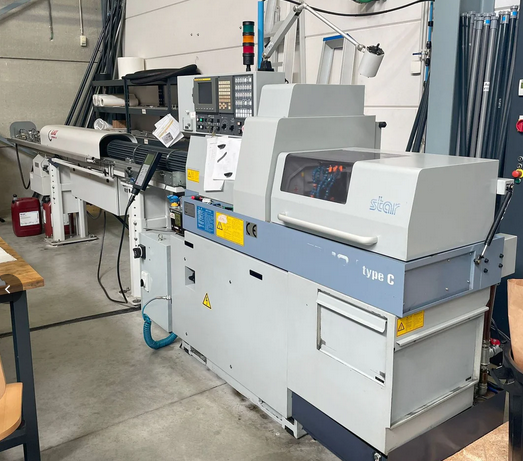

Star FANUC Series 18i-TB control 15000 rpm SR-10 J type C 4 Axis

X-axis travel not specified
Y-axis travel not specified
Z-axis travel not specified
C axis (main spindle)
C axis (back spindle)

FANUC Series 18i-TB control
Lamp
Status light

Machining diameter max 10 mm
Maximum turning length 135 mm

Main spindle speed 1–15000 rpm
Main spindle power 3.7 kW
Back spindle speed 1–10000 rpm
Back spindle power 1.1 kW
Driven tool speed 250–8000 rpm

Rapid traverse 35 m/min

Tool capacity 13
Turning tools 6
Drilling tools 4
Transverse tools 3
Counter-operation drilling tools 8

Machine weight about 1400 kg
Machine length 2000 mm
Machine width 820 mm
Machine height 1800 mm

Bar feeder LNS TRYTON 112
