Starline SIEMENS 840D 2800 rpm Ziersch Starline 1000 CNC 2000 3 Axis

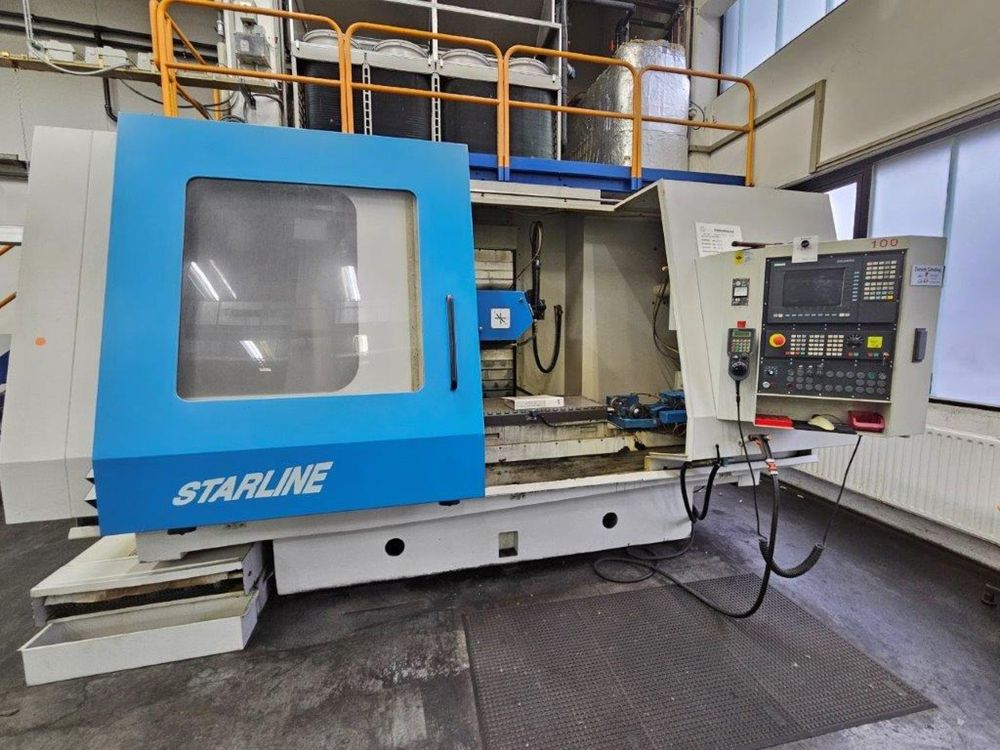

Ziersch Starline 1000 CNC 2000

Control SIEMENS 840D
Ballscrew in X-Axis
CNC Table dresser diameter 120 mm with 40° angle
Wheel profiling attachment diameter 120 mm x 1.5 mm width
Filtration system
Coolant system
Cycle controlled and G-Code
Big Stone & Flanges package
X-Travel 1200 mm
Y-Travel 400 mm
Z-Travel 560 mm
Table Length 1000 mm
Table Width 400 mm
Table Load 1000 kg
Feed rate X-Axis 30000 mm/min
Feed rate Z-Axis 10000 mm/min
Grinding stone dimensions 400 x 127 x 80 mm
Power 7.5 kW
Speed 2800 rpm
Feed rate Y-Axis 30000 mm/min
Dimensions L x W x H 4500 x 2100 x 2300 mm
Weight 7900 kg
