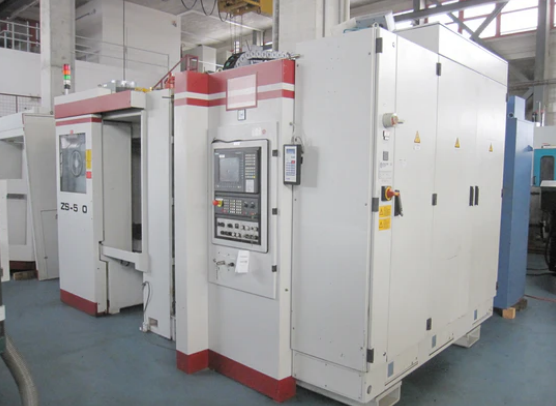

Starrag ZS 500-130 5 Axis

Axis travel X: 800 mm
Axis travel Y: 750 mm
Axis travel Z: 620 mm
A axis: +35° / -110° (145°)
B axis: 0.001° indexing
Rapid traverse: 40 m/min
5-axis simultaneous
Control: Siemens SINUMERIK 840D
Tool break control
Maximum table load: 800 kg
Maximum workpiece diameter: 500 mm
Maximum workpiece height: 550 mm
Spindle taper: HSK-A100
Spindle speed: up to 12,000 rpm
Spindle motor: 40 kW
Maximum spindle torque: 250 Nm
Table speed: 30 rpm
Tool magazine capacity: 60 tools
Maximum tool diameter: 120 mm
Maximum tool diameter (adjacent pockets free): 200 mm
Maximum tool length: 400 mm
Maximum tool weight: 15 kg
4 Staflex pallets
Pallet size: 500 × 500 mm
Pallet transport weight: 200 kg
Air supply: 5 bar
Electrical: 400 V, 50 Hz, 3-phase
Installed power: 120 kW
Machine dimensions: 8000 × 5000 × 4000 mm
Machine weight: approx. 22,000 kg
Toolholder set
Pallet changing device
Rotating viewing window
