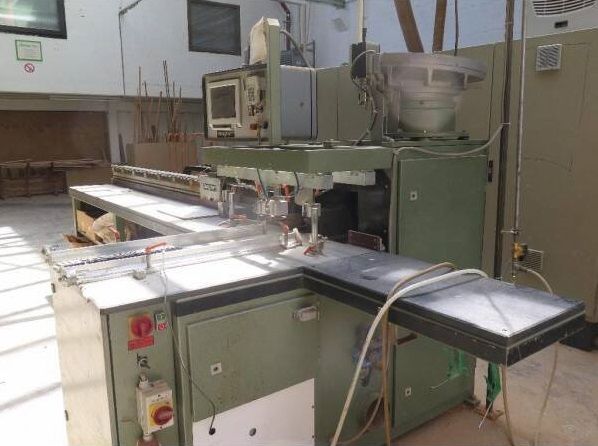

Stegherr FD/E - E

Autom. Drilling Machine for Windows and Doors
drilling, gluing, dowel inserting
for processing of camphor woods, dibbles, window bars and door elements in one operation
max. work piece height 150 mm
max. work piece width 350 mm
with dowel unit 250 mm
max. drill depth 80 mm
max. vertical drill distance 100 mm
drill unit 0,75 kW
drill diameter max. 16 mm
multi spindle drilling heads can also be used
dowel unit with high pressure gluing pump
machine dimensions l = 4500 mm x w = 2000 mm x h = 1980 mm
