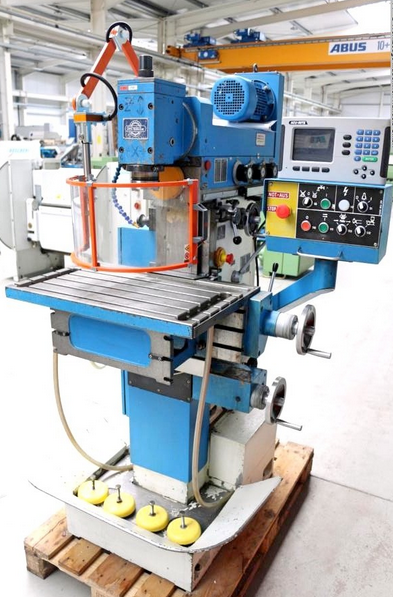

Stimin UWF 220 2240 rpm

X travel: 280 / 300 mm
Y travel: 250 / 270 mm
Z travel: 300 / 310 mm
Spindle speed range: 45 - 2240 rpm
Spindle speed steps: 18
Spindle taper: ISO 40
Quill stroke: 60 mm
Table size: 670 x 320 mm
Table load: 150 kg
Feed range: 12.5 - 630 mm/min
Feed steps: 18
Rapid traverse: 1200 mm/min
Max workpiece weight: 150 kg
T-slots: 5x 12 x 63 mm
Total power requirement: 1.6 kW
Machine weight: 1100 kg
Machine dimensions (L x W x H): 1265 x 1080 x 1620 mm
Digital 3-axis display (ACURITE)
Pivoting control panel
Emergency stop button
Electric axis adjustment (X/Y/Z)
Rapid traverse in all directions
Pivoting spindle guard
Coolant system
Lower chip tray
Vertical milling head with quill adjustment
Milling head rotation 90°
Tool holder ISO / DIN 40 / 2080
Fixed angle table
T-slot width x spacing: 12 x 60 mm
4 machine feet
Electrical diagram
