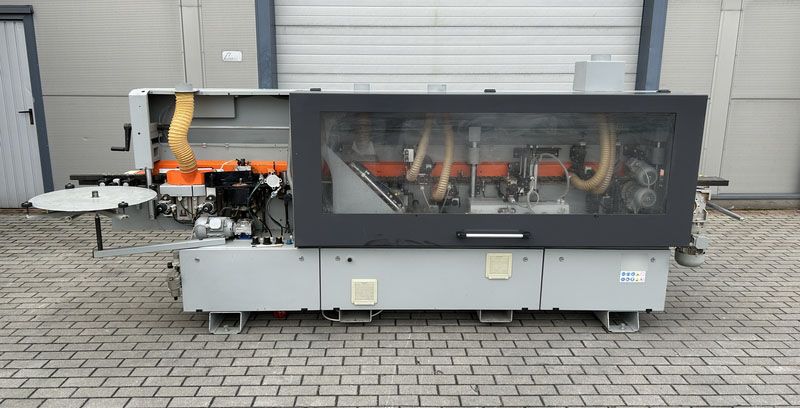

Stomana KZM 6 RTF

Edge banding machine with pre-milling and corner trimming
Min./max. veneer thickness 0.4 – 3 mm
Min./max. veneer height 12 – 47 mm (optional: veneering up to 60 mm)
Min./max. material height 10 – 45 mm
Min. material width 60 mm
Min. Material length 90 mm
Pre-milling of the material: 2 motors with a power output of 0.75 kW (diamond cutter)
Feed motor power 1.5 kW
Panel-mounted console at eye level
Chain feed
Loading plate for PVC and ABS edges
Mechanical pressure zone driven by the main pressure roller and a series of pressure rollers to minimize the glue layer
Central pressure setting
Adhesive granulate container
Glue application to the material using a glue roller
Electronic temperature control, operating temperature 180 – 200 °C
Pneumatic tape cutter
Element gap indicator
Double trimming saw for trimming the front and rear excess material
Precision linear guides
2 motors with a power output of 0.35 kW, 200 Hz, 12,000 rpm
Motion cutting for high-precision cutting
Flat and round milling (top/bottom) with vertical and horizontal guidance
Scraper unit
Buffing unit (top/bottom)
Two motors with 0.18 kW, 50 Hz, 1400 rpm
Height and tilt adjustment
Total power consumption: 4.9 kW / 400 V
Dust extraction port: 120 mm
Roller table extension: 250 mm
Noise-reducing housing with a viewing window
Compressed air connection: 6.5 bar
Dimensions (L/W/H): 3600 x 1200 x 1260 mm
Weight: 710 kg
