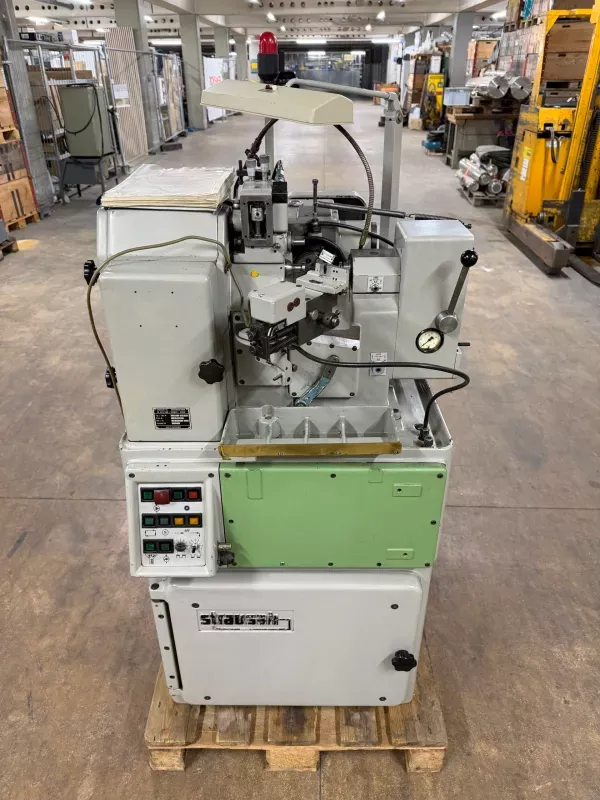

Strausak 30

Workpiece diameter with manual loading: 35 mm
Workpiece diameter with magazine loading: 15 mm
Workpiece diameter with fully automatic loading: 10–12 mm
Maximum milling length: 12 mm
Plunge feed at 42% of longitudinal feed: 22 mm
Plunge feed at 25% of longitudinal feed: 14 mm
Maximum module in steel: 1.0 mm
Maximum module in non-ferrous material (solid): 26 / 35 mm
Selectable number of teeth: 5–390
Cutter speeds: 1160–8550 rpm
Plunge feed per workpiece revolution: 0.0325–0.273 mm
Longitudinal feed per workpiece revolution: 0.033–0.65 mm
Cutter diameter: 8–24 mm
Machine weight: 600 kg
Machine motor: 0.8 hp at 3000 rpm
Hydraulic motor: 0.25 hp at 1500 rpm
Coolant motor: 0.25 hp at 1500 rpm
