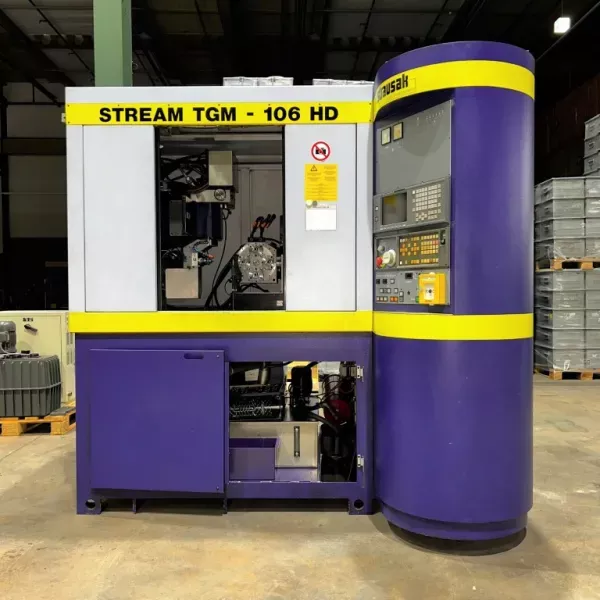

Strausak STREAM TGM-106 HD - High Precision 6-Axis CNC Grinding Center

X-axis travel: +110 to +300 mm (total -17 mm)
Y-axis travel: -17 to +173 mm (total 190 mm)
V-axis swivel range (workpiece head): -52° to +132° (total 184°)
Z-axis travel: -75 to +75 mm (total 150 mm)
W-axis tilt (grinding turret): -15° to +15° (total 30°)
U-axis rotation (workpiece chuck): 360°
Rapid traverse (linear axes): 3 m/min
Minimum step: 0.001 mm / 0.001°
Control: GE Fanuc 16-MB
Grinding turret – max. spindles: 4
Spindle diameter: 50 mm
Spindle motor power: 2.2 kW
Max. grinding wheels per spindle: 3
Max. grinding wheel diameter: 125 mm
Spindle speed: 16,000 rpm
Indexing time (spindle to spindle): 0.8 sec
Workpiece chuck speed: 0–1300 rpm (stepless)
Electrical power: 3 × 380 V – 50 Hz – 7.5 kW
Air pressure: 2 bar – 190 l/min
Machine dimensions: 2180 × 1560 × 2110 mm
Machine weight: 3250 kg
