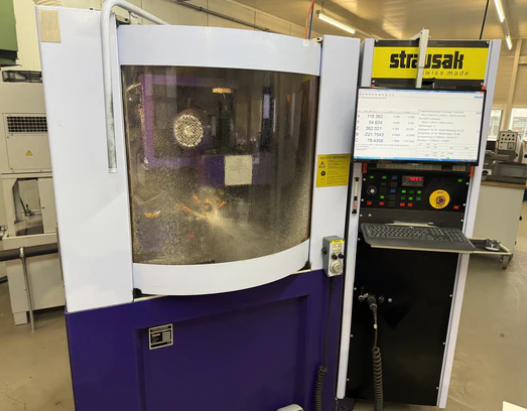

Strausak FLEXIMAT

X-Axis Travel 240 mm
Y-Axis Travel 360 mm
Z-Axis Travel 360 mm
B-Axis Rotation 470°
C-Axis Resolution 0.001°
Number of Axes 5
Control NUM 1062 M
Max Grinding Wheel Diameter 160 mm
Spindle Taper 50 ISO
Work Spindle Speed 1000 t/min
Grinding Spindle Speed 1000–9000 t/min (stepless)
Spindle Motor 6/8 kW
Grinding Spindle Motor 3.7 kW
Rapid Traverse 10 m/min
Voltage 3×400 V 50 Hz
Total Power 10 kVA
Machine Length 2050 mm
Machine Width 1945 mm
Machine Height 2040 mm
PC System
3D Measuring Probe
Electronic Handwheel
Switch-Cabinet Air Conditioner
