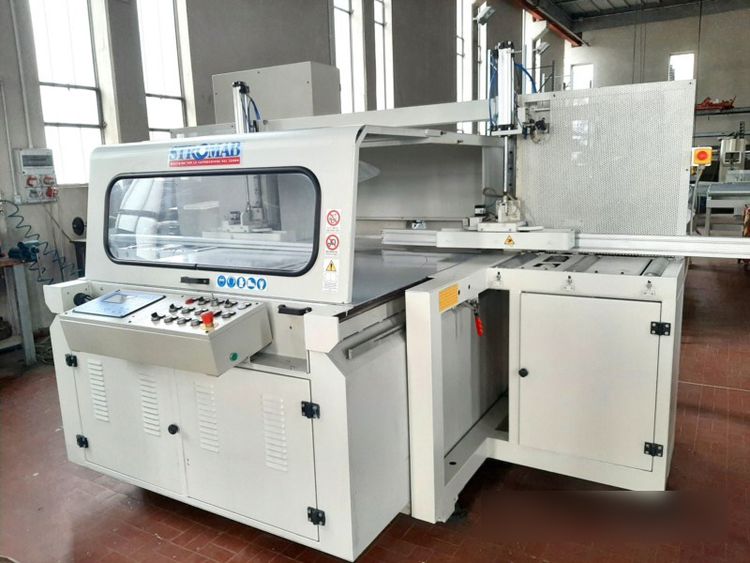

Stromab CT 800

Cutting centre for beams, wood carpentry, wooden roofs, sawmill, balconies and various - CE Standard

Technical data :
Blade diameter mm 800
Motor power Hp 20
N° 4 electronically controlled axis : Saw table rotation ( 0-340°)
Speed of the saw table rotation from 0 to 340° 18 sec.
Blade inclination from 90° to 45° (speed of blade inclination 20 sec.) - blade rise above table to trim max height mm 300
Beam positioning and measuring ( speed 17 mt/min)
1 manually controlled axis: motorized positioning of the saw table compared to the saw fence mm 600
Photocell for the automatic reading of workpiece beginning
Cutting capacity at 90° with single stroke: mm 280 x 290 / 250 x 390 / 200 x 450
At 90° with repeated cut mm 280 x 770 / 250 x 840
At 45° with single cut mm 200 x 210
At 45° with repeated cut mm 200 x 760
Max trimming height mm 300
Cutting precision : +/- 2 mm on 10 mt beam (straight beam ) +/-0,2° on rotation angle of the table +/-0,2° on inclination angle of the blade
Control Elco Elettronica Fox 200
Rollers: n° 2 idle rollers benches mt. 2 with rollers diameter 133 mm
Widia blade diameter 800 mm
Overall dimensions : Machine mm 4000 x 2300 x 2300 h - Roller tables mm 2000 x 800 x 1050 h
Weight kg 2900
