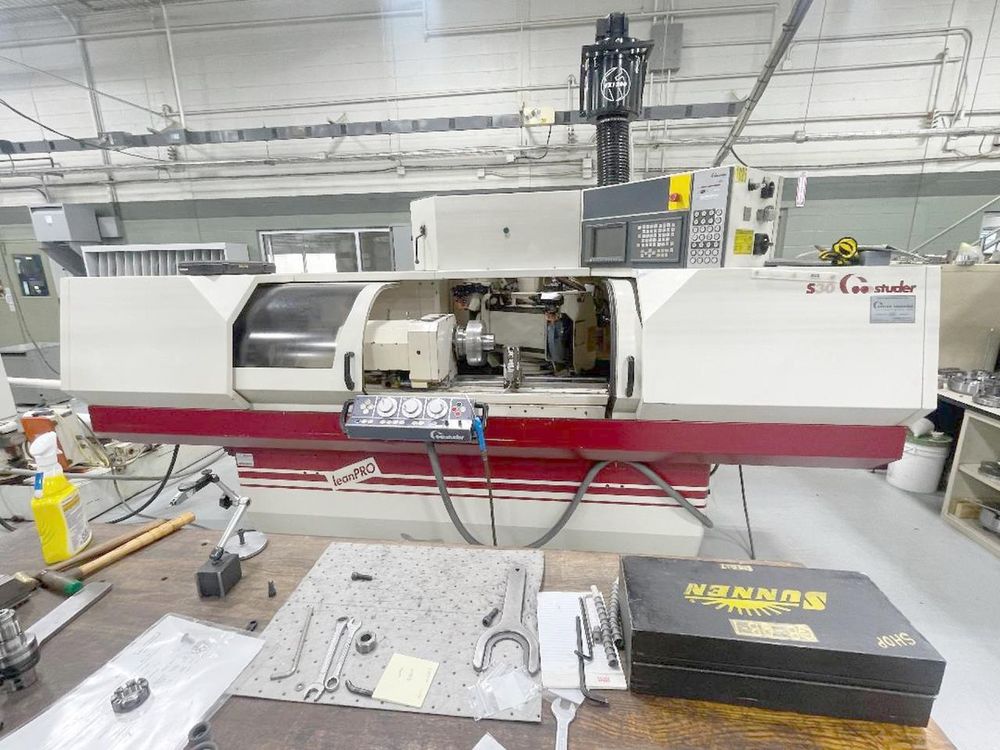

Studer S 30 LEAN PRO

STUDER S 30 LEAN PRO

Controller: FANUC 16-T
Centre height:175 mm
Distance between centres:1000 mm
Workpiece weight on centres max.:130 kg

Grinding wheel:
Grinding wheel left side:
Diameter: 400 mm
Width: 80 mm
Bore: 127 mm

Grinding wheel right side:
Diameter: 400 mm
Width: 80 mm
Bore: 127 mm

Turret grinding tool holder for ext. and int.
Turret grinding tool holder num. of spindles:3
Grinding wheel speeds:Rotatable grinding spindle head (b-axis): °
Peripheral speed: 35 m/s
Indexing manually
Cross travel CNC:275 mm
Feed speed up:0.001–5000 mm/min
Rapid feed motion:5 m/min
Longitudinal slide:Max. travel: 275 mm

Max. grinding length: 1050 mm
Resolution of the scale: 0.0001 mm

Transversal slide:
Resolution of the scale: 0.0001 mm

Work piece spindle head:
Stepless
From: 30 rpm
Up to: 1000 rpm

Taper in spindle: MT 5
Taper in tailstock: 3 MT
Tailstock travel of barrel: 35 mm

Table speed:Stepless
From: 0.001 mm/min
Up to: 10000 mm/min

Max. table angular displacement:5 °
Voltage 50 Hz 3x:400 Volt
Grinding spindle motor:7.5 kW
Total power required:30 kVA
Machine's weight about:4800 kg

Overall dimensions machine:
Length: 4500 mm
Width: 2300 mm
Height: 2200 mm
