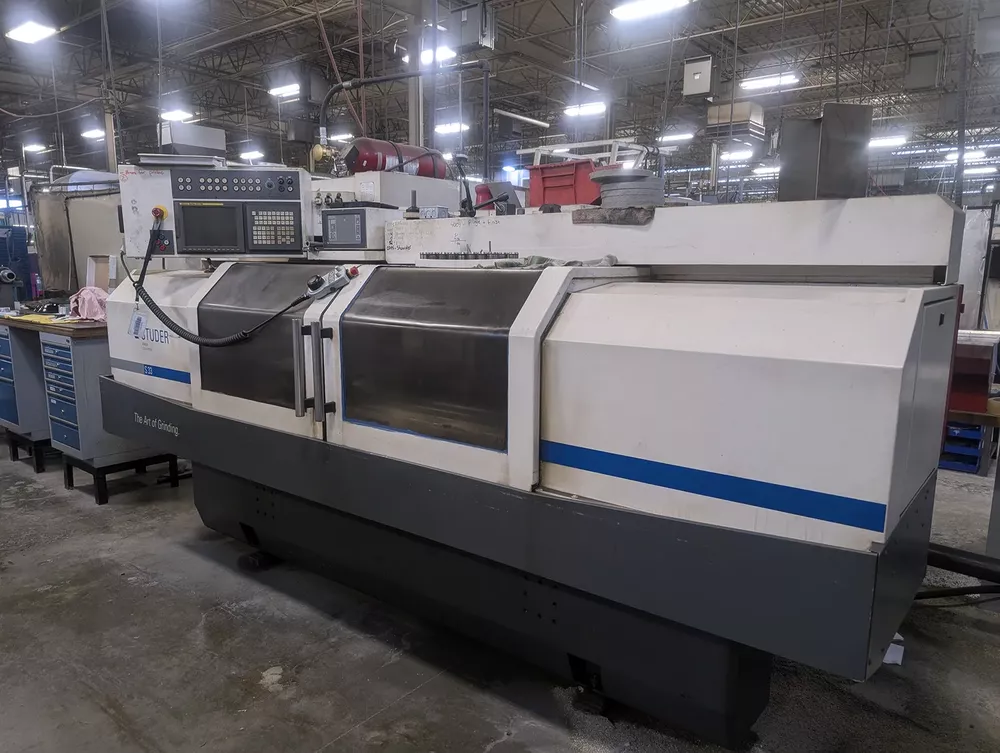

Studer S33CNC

Technical Data
X-axis travel: 14.6 in
X-axis rapid speed: 590 in/min
Z-axis travel: 31.5 in
Z-axis rapid speed: 787 in/min
B-axis swivel range: 255°
Control: Fanuc Series 21i-TB
Center height: 6.9 in
Distance between centers: 39.4 in
Max workpiece diameter: 13.7 in
Max workpiece weight: 330 lbs
Spindle drive power: 10.7 hp
Max spindle speed: 3,200 rpm
Grinding wheel diameter (max): 20.0 in
Grinding wheel width (max): 3.15 in

Equipped With
Fanuc Series 21i-TB control with Studer Grinding System Interface
Upgraded variable frequency drive (VFD) by Studer
CNC controlled B-axis
Live center tailstock
Large OD grinding wheel spindle
Table-mounted plunge dresser
Double T-slot worktable for dressing devices
Extra collets
One extra wheel
