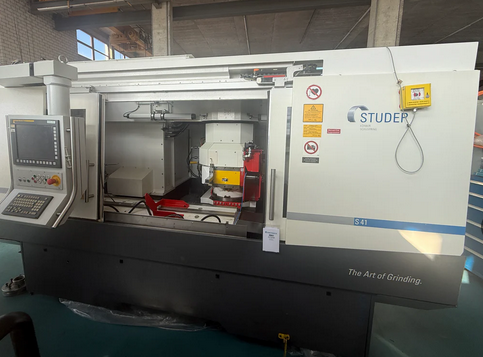

Studer S 41

X axis travel: 350 mm
Z axis travel: 1150 mm
Centre height: 225 mm
Distance between centres: 1000 mm

B axis swivelling range: -45° to 225°
B axis resolution: 0.0005°
High-resolution C-axis

Control: GE FANUC Series 31i-Model A
Coolant system
Redressing device
Internal grinding attachment
Electronic handheld control
Foot pedal
Lamp
Status light

Max workpiece diameter: 550 mm
Workpiece height: 1000 mm
Workpiece weight: 250 kg

Grinding spindle speed: 750 – 4500 rpm
Internal grinding spindle speeds: 24000 – 42000 rpm
Grinding wheel diameter: 500 mm
Grinding wheel width: 32 – 80 mm
Grinding wheel peripheral speed: 50 / 80 m/s
Workpiece spindle motor: 15 kW

Tailstock spindle stroke: 60 mm
Tailstock spindle diameter: 60 mm

Machine weight: 9000 kg
