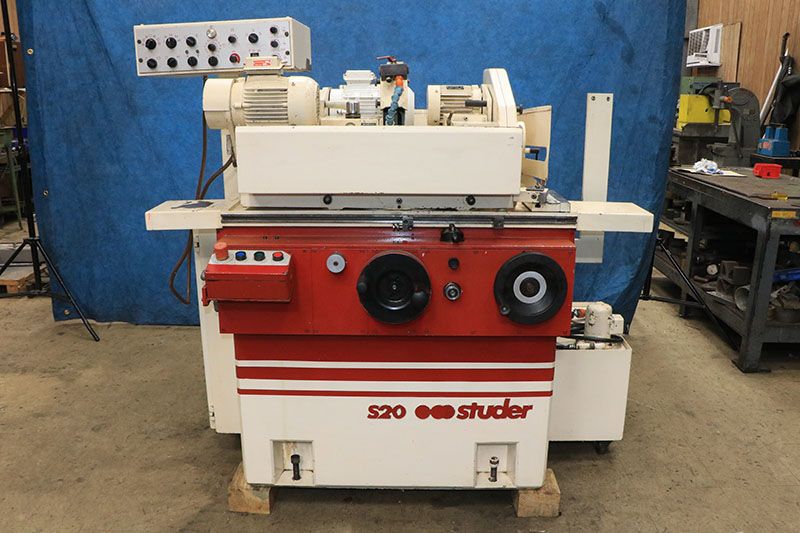

Studer S20-2

Center Height: 3.94"
Swing Over Bed: 7.88"
Distance Between Centers: 15.7"
Maximum Workpiece Weight Between Centers: 44 lbs

X Axis (Cross Slide) Rapid Approach: 1.18"
X Axis Maximum Travel: 0.98"
X Axis Feed Speed: 0.0012" to 0.06" IPM
X Axis Diameter Plunge Feed (Incremental): 0 to 0.006"
X Axis Sparkout Time: 0 to 5 seconds

Z Axis (Longitudinal Slide) Maximum Travel: 16.5"
Z Axis Speed Range: 3.94" to 138" IPM
Z Axis Smallest Automatic Travel: 0.04"
Z Axis Reverse Delay: 0 to 5 seconds
Machine Table Swiveling Range: 30° counterclockwise / 15° clockwise

Wheelhead Swivel Range: 0°, 15°, 30°
Grinding Wheel Size: 14" diameter × 1.25" wide × 5" bore
Optional Grinding Wheel Sizes: 10" and 12" diameter
Wheelhead Motor: 4 HP
Wheel Speeds: 1600 / 1975 / 2200 RPM
Wheelhead Swiveling: Yes

Universal Workhead Infinitely Variable Spindle Speeds: 30 to 1200 RPM
Universal Workhead Spindle Taper: MT 4
Universal Workhead Spindle Hole Diameter: 0.95"
Universal Workhead Swiveling Range: 0° to 90°
Universal Workhead Motor: 0.66 HP

Tailstock Spindle Taper: MT 2
Tailstock Spindle Travel: 0.79"
Tailstock Fine Adjustment for Cylindrical Corrections: 0.0016"

Ergonomic Machine Control and Operation
Independent Slide, Housing, and Motor Drive for Internal Grinding Attachment
Studer I.D. Spindle, Belt-Driven Internal Grinding Attachment
Fine Adjustment and Angle Stop on Longitudinal Slide for Precise Taper Setting
Center in the Workhead for Accurate Positioning
Coolant System
Wide Swiveling Range of the Table
Tailstock
