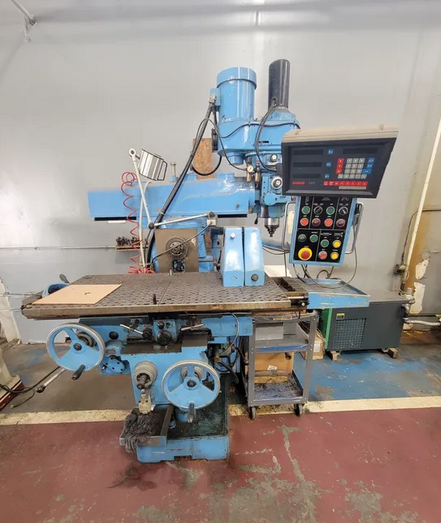

Supermax 2GS-16 Vertical 1300 rpm

Universal milling machine
Table longitudinal travel (X): 39.4 in (1000 mm)
Cross travel (Y): 16 in (406 mm)
Vertical travel (Z): 17.7 in (450 mm)
Longitudinal & cross table feed rate: 0.5–23.75 IPM
Rapid traverse longitudinal & cross: 118 IPM
Rapid traverse vertical: 31.5 IPM
Horizontal spindle taper: #40 NMTB
Horizontal spindle speed range: 85–1300 rpm
Horizontal spindle motor: 5 hp
Vertical spindle speed range: 75–4220 rpm
Vertical spindle motor: 5 hp
Vertical spindle quill travel: 5.5 in
Quill feed rates: 0.0015, 0.003, 0.005 IPR
Quill travel: 5.5 in
Column swivel: 45°
Head swivel angle: 90°
Table size (L×W): 51.5 in × 11 in
Newall 3-axis DRO included
Power drawbar vertical included
Full power knee with rapid traverse included
2 arbor supports included
Drilled and tapered sub plate included
Machine weight: 5720 lb
Overall length: 74 in
Overall width: 62 in
Overall height: 94 in
Main spindle motor: 5 hp
Vertical spindle motor: 5 hp
