Supermax YCM-2V Vertical 1300 RPM

Ref : 2730671-3-CP
Condition : Used
Manufacturer : Supermax
Model : YCM-2V
Type : Vertical
Spindle Speed : 1300 RPM
Year(s) : -
Quantity : 1
Location : Seller or machines location:
AMERICA North (USA-Canada-Mexico)

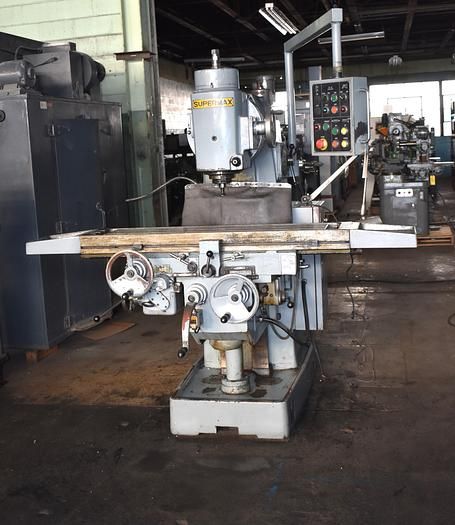

SUPERMAX YCM-2V

Table working surface: 11" x 52"
Table longitudinal travel (X-axis): 39.375"
Saddle cross travel (Y-axis): 12"
Knee vertical travel (Z-axis): 17.75"
Spindle inclined angle (right & left): 45 degrees
Quill travel (manual): 3.5"
Quill diameter: 6.25"
Table load capacity (power): 1650 lb
Table load capacity (manual): 2200 lb
Distance spindle to table: 17.75"
Spindle center to column surface: 12.5"
Spindle speed range: 85 to 1300 RPM
Longitudinal & cross feeds range: 0.5 to 23.75 IPM
Vertical rapid feed: 31.5 IPM
Spindle motor: 5 HP
Longitudinal & cross feed motor: 2 HP
Table vertical rapid motor: 1 HP
Weight: 4840 lb
Pendant control
Power longitudinal and cross table feed
Backlash compensation
Hardened and ground square ways
