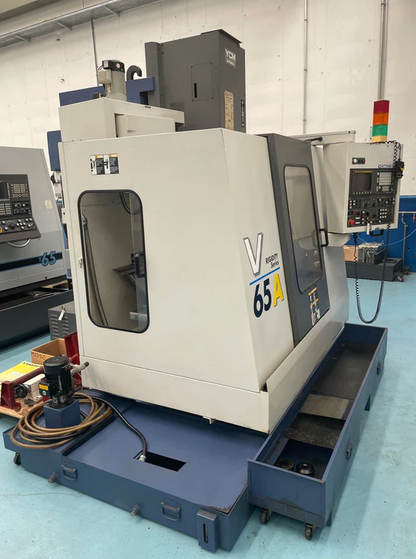

Supermax, YCM V 65A 3 Axis

Control: FANUC Series O-M
Number of Axes: 4
Table Length: 840 mm
Table Width: 420 mm
Number of T-Slots: 4
T-Slot Distance: 100 mm
T-Slot Width: 18 mm
Maximum Table Load: 350 kg
X Axis Travel: 650 mm
Y Axis Travel: 410 mm
Z Axis Travel: 615 mm
Spindle Nose: BT 40
Distance Spindle Nose to Table: 135-750 mm
Spindle Speed: 45-8000 rpm, stepless
Spindle Motor Power: 5.5 kW
Spindle Power: 3.7 / 5.5 kW
Feedrate: 10,000 mm/min
Rapid Traverse X, Y, Z: 16 m/min
Voltage: 3x400 V, 50 Hz
Machine Weight: 3600 kg
Machine Dimensions: 2770 x 2110 x 1930 mm
Tool Changer: 20 tools
Maximum Tool Diameter: 300 mm
Maximum Tool Weight: 6 kg
Accessories: Toolholder Set
Accessories: Coolant System 130 l
Accessories: 4th Axis Dividing Attachment with Tailstock
Accessories: Electronic Handwheel
Accessories: Lamp
Accessories: Status Light
