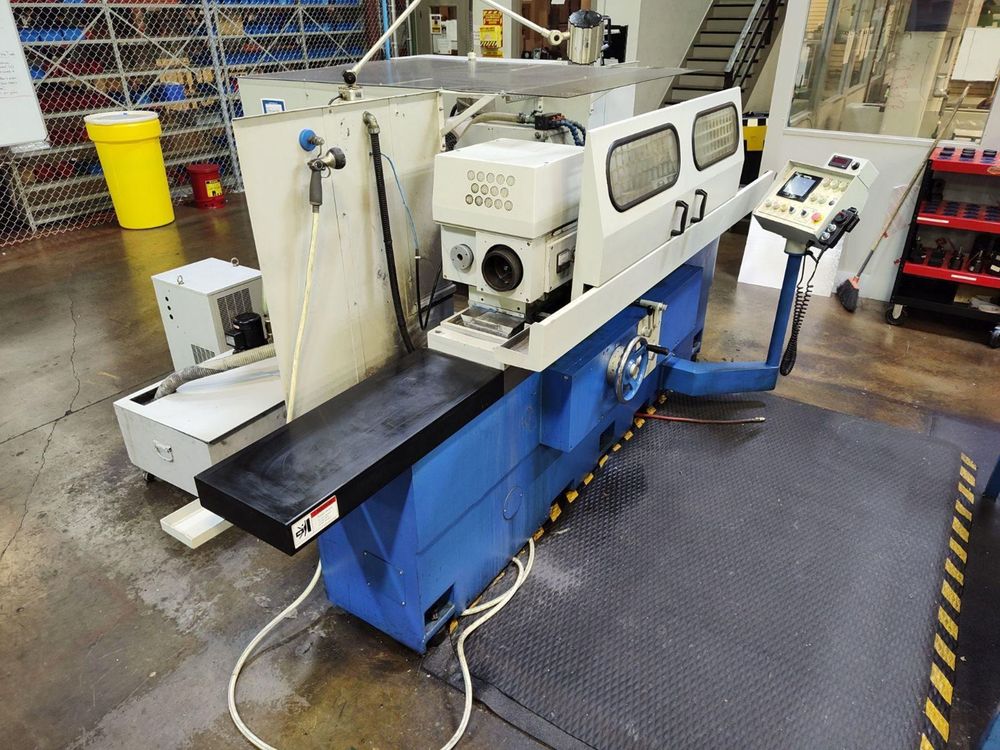

Supertec G38P-100NC

Distance Between Centers 40"
Swing Over Table 15.7"
Max. Grinding Diameter 14"
Max. Load Held Between Centers 330 lbs
Wheelhead Auto Incremental Infeed 0.0001" ~ 0.0999"
Wheelhead Handwheel per Revolution By MPG
Wheelhead Top Slide Sliding Travel 7"
Wheelhead Total Infeed 9.6"
Wheelhead Swiveling Angle (R&L) 30°
Wheelhead Automatic Rapid Travel 1.75"
Grinding Wheel Diameter x Width x Bore 16" x 2" x 5"
Grinding Wheel Speed 1,650 rpm
Table Swivelling Angle (R&L) 7°
Table Traverse Speed Infinitely Variable 1.2" ~ 275"/min
Table Handwheel per Revolution 0.39"
Workhead Swiveling Angle (R&L) 90°
Workhead Center Taper MT4
Workhead Spindle Speed Infinitely Variable 30 ~ 350 rpm
Tailstock Center Taper MT4 (Option MT5)
Tailstock Quill Travel 1"
Wheel Spindle Motor 7.5 HP
Workhead Motor 2 HP
Hydraulic Pump 2 HP
Coolant Pump 0.25 HP
Net Weight 10,500 lbs
Mitsubishi PLC Control with Menu-Driven LCD Touch Screen
Ball Screw & AC Servo Motor on Infeed
Manual Pulse Generator for Wheelhead Movement
Turcite on Ways for Wheelhead Slide
Infinitely Variable Workhead Spindle Speeds with RPM Display
Dual Live & Dead Workhead Spindle
Universal Grinder Wheelhead & Workhead Swivel
Hydraulic Table Traverse with Manual Handwheel
Automatic Lubrication System
Coolant System with Standard Tank and Pump
Separate Oil Cooler for Hydraulic Oil Thermal Stability
Center in Workhead
2-Point Steady Rest
Table Mounted Dresser
Machine Wired for 230 Volts, 45 Full Load Amps
