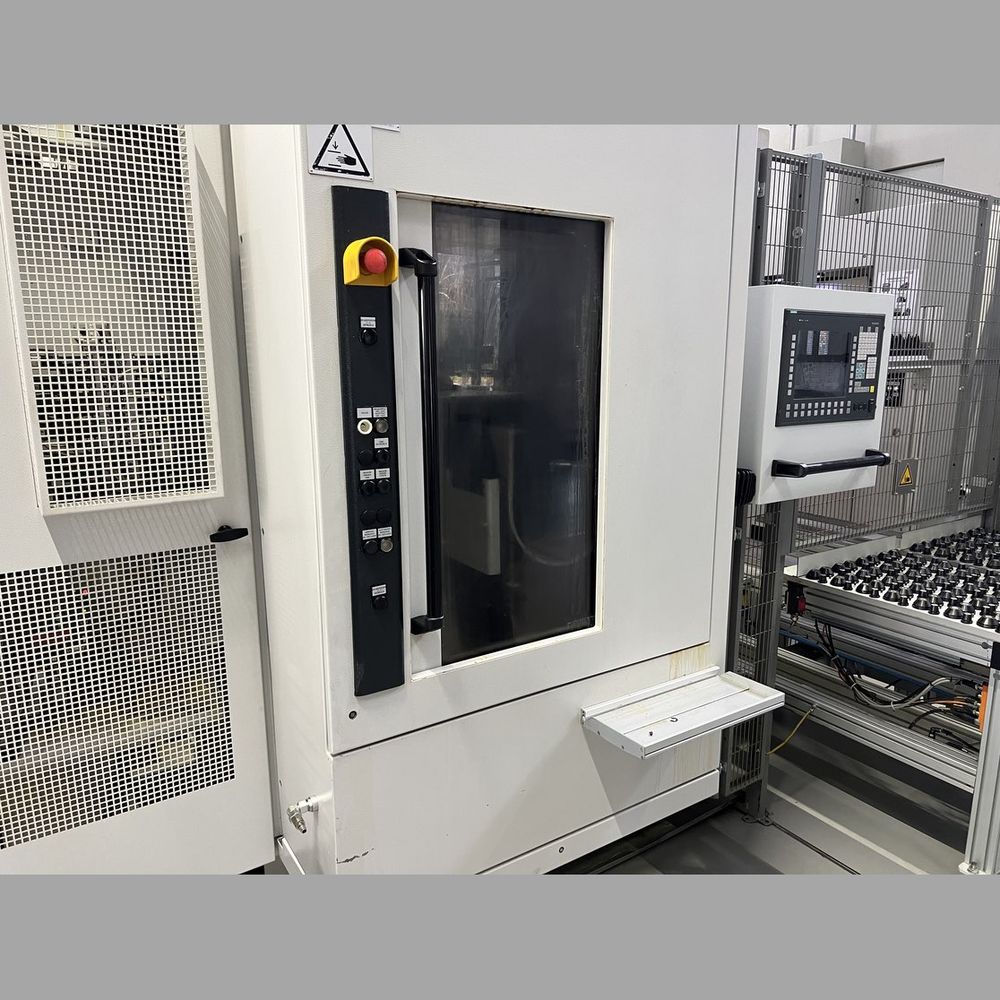

SW (Schwäbische Werkzeugmaschinen) BA 400-4 4 Axis

Axis travel X: 200 mm
Axis travel Y: 400 (700) mm
Axis travel Z: 400 mm
Max. rapid traverse X/Y/Z: 40/40/40 m/min
Max. acceleration X/Y/Z: 3/3/5 m/s²
Feed force X/Y/Z: 11000/11000/11000 N
Tool taper: HSK 63
Max. speed milling spindle: 17500 1/min
Max. power at 10-40/100% duty ratio: 16/12 kW
Max. torque at 10-40/100% duty ratio: 50/38 Nm
Spindle diameter front bearing: 65 mm
Horizontal milling spindles: 4
Spindle distance: 200 mm
Tool magazine type: Chain-type
Tool magazine stations: 4×48
Max. tool diameter: 70 mm
Max. tool diameter without adjacent tools: 125 mm
Max. tool length: 275 mm
Max. workpiece weight: 6 kg
Chip-to-chip time: 5 s
Pallet changer: 2 fold
Swivel unit: NC-controlled
Clamping bridge supports
Hydraulic clamping
Clamping circuits on each side: 2
Air-monitored workpiece clamping
Tool breakage control by laser
Tool breakage monitoring by ARTIS
Fully enclosed work area
Automatic working range sliding door
Light in working area
Preparation for central oil-/emulsion mist extraction unit
Chip conveyor
Internal coolant supply
Coolant unit with paperband filter
High pressure pump
Interface for gantry loader or robot
Total power requirement: 100 kVA
Machine dimensions (L×W×H): 4700 × 3400 × 3300 mm
Space requirement (L×W×H): 6350 × 4500 × 4000 mm
Machine weight: 14800 kg
