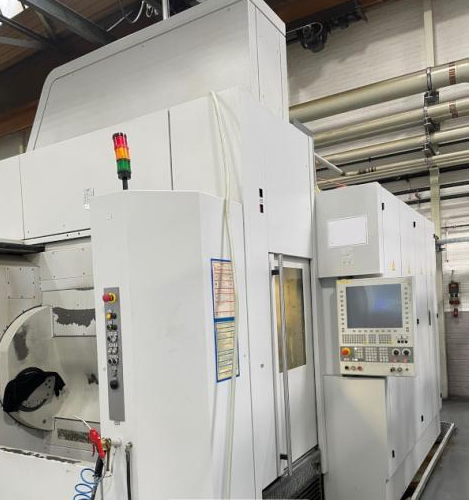

SW (Schwäbische Werkzeugmaschinen) BA422 4 Axis

X Axis Travel: 400 mm
Y Axis Travel: 500 mm
Y Axis Travel (Tool Change Position): 775 mm
Z Axis Travel: 425 mm
Rapid Traverse X/Y/Z: 55 / 70 / 70 m/min
Q Axis: 0 – 180° Double Swivel Carrier with NC Rotary Axes and Counter Bearing
Control: Siemens 840D SL
High Pressure Coolant Connection: 80 bar
Coolant Unit
Rinsing Package
Tool Breakage Control
NC Breakage Control
Clamping Control / Air Monitoring
Seating Surface Control
Automatic Loading Door
Robot Loading Interface
Additional Control Panel for Tool Magazine
Number of Spindles: 2
Spindle Distance: 400 mm
Spindle Speed: up to 17,500 rpm
Spindle Power (40% / 100% Duty Cycle): 2 x 35 / 26 kW
Torque: 80 Nm
Tool Holder: HSK 63
Tool Magazine: 2 x 60 Positions
Maximum Tool Diameter: 80 / 160 mm
Maximum Tool Length: 300 mm
Maximum Tool Weight: 10 kg
Chip Conveyor Short Version with Extraction
Installation Area (L x W x H): approx. 7.0 x 4.0 x 4.38 m
Machine Weight: approx. 18,000 kg
Transport Weight: approx. 15,000 kg
