SW (Schwäbische Werkzeugmaschinen) BA W06-42 4 Axis

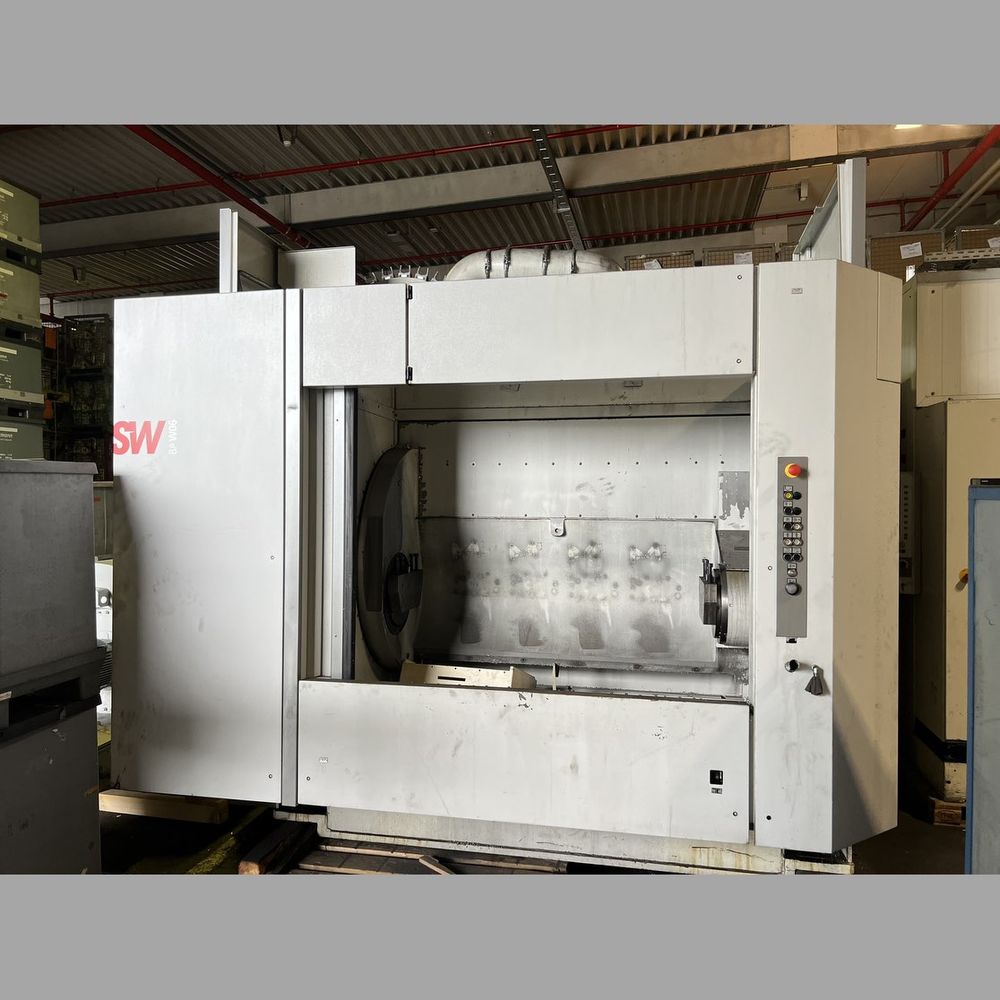

SW SCHWÄBISCHE WERKZEUGMASCHINEN BA W06-42
2015

Control: Siemens 840D solutionline
Spindles: 4 horizontal milling spindles
X-axis travel: 300 mm
Y-axis travel: 600 mm (875 mm max)
Z-axis travel: 500 mm
Max rapid traverse X/Y/Z: 70/70/70 m/min
Max acceleration X/Y/Z: 12/10/20 m/s²
Feed force X/Y/Z: 10000/20000/15000 N
Linear glass scales
Linear drive on X/Y/Z axes
Tool taper: HSK-A 63
Max spindle speed: 17500 rpm
Max spindle power (10-40/100%): 4×32 kW
Max spindle torque (10-40/100%): 4×72 Nm
Spindle front bearing diameter: 80 mm
Spindle distance: 300 mm
Air-monitored tool clamping
Pneumatic tool taper cleaning
Tool magazine: 4×36 stations
Reception for multi-spindle drilling heads
Max tool diameter: 80 mm
Max tool diameter without adjacent tools: 160 mm
Max tool length: 400 mm
Max workpiece weight per spindle: 10 kg
Chip-to-chip time: 3 s
Pallet changer: 2-fold
Max workpiece weight per pallet: 600 kg
Swivel units: 2 NC-controlled
Bridge dimensions: 1430 mm
Clamping bridge supports: 2
Hydraulic clamping
Additional clamping circuits: 5
Air-monitored workpiece clamping
Tool breakage monitoring by ARTIS
Tool life monitoring
Fully enclosed work area
Automatic sliding door for loading
Working area lighting
Oil/emulsion mist extraction
Scraper-type chip conveyor
Machine operates with emulsion
Internal coolant supply
Interface for gantry loader or robot
Modem for remote diagnostics and teleservice
Tapping without compensation chuck
Additional control panel for tool management
Warning lamp
Air supply: 7 bar
Operating voltage: 3×400 V, 50 Hz
Total power requirement: 156 kVA
Machine transport dimensions (L×W×H): 3680×5400×3250 mm
Total space requirement (L×W×H): 4800×7500×3300 mm
Machine weight: 16000 kg
