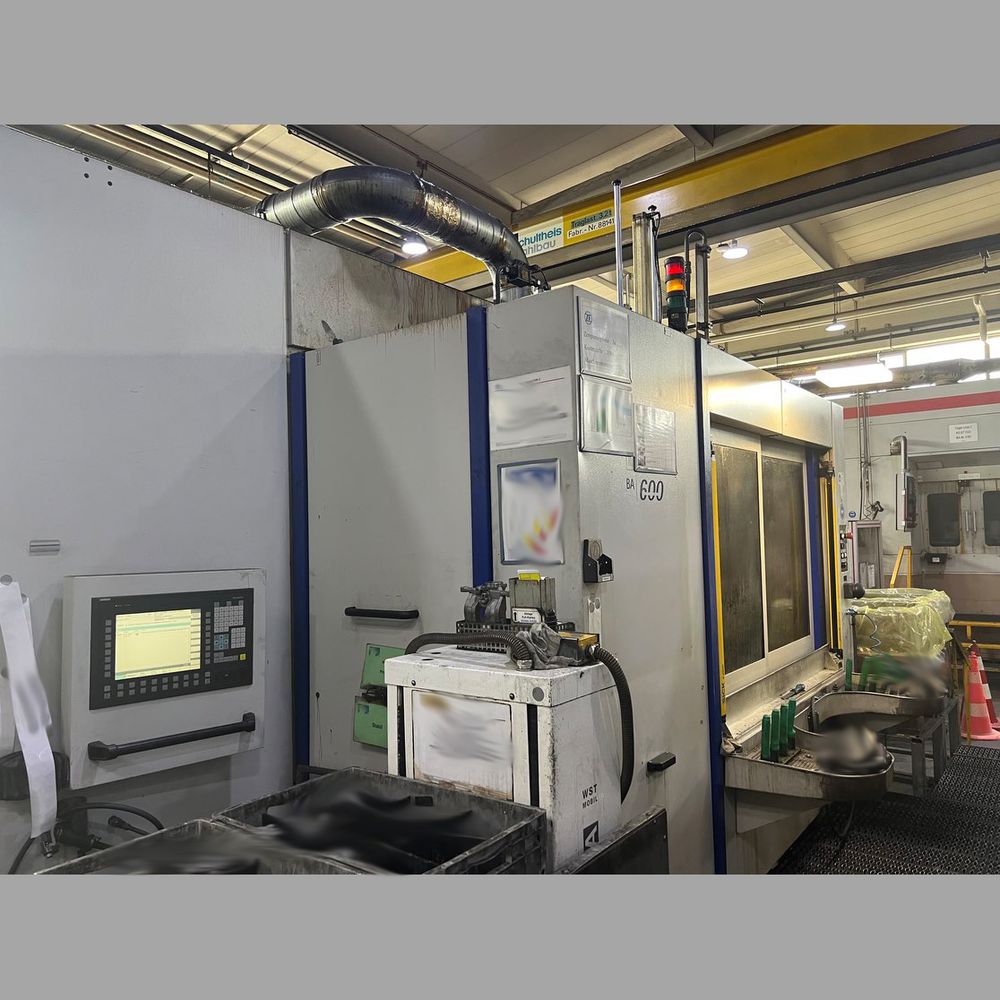

SW (Schwäbische Werkzeugmaschinen) BA 600-2 3 Axis

X travel: 600 mm
Y travel: 600 (975) mm
Z travel: 500 mm
Max. rapid traverse X/Y/Z: 45/45/45 m/min
Max. acceleration X/Y/Z: 2.5/2.5/2.5 m/s²
Feed force X/Y/Z: 15,000/15,000/15,000 N
Control: Siemens 840 D
Tool taper: HSK-A100
Max. spindle speed: 10,000 1/min
Max. power at 10–40/100% duty ratio: 2x38 kW
Max. torque at 10–40/100% duty ratio: 2x363 Nm
Spindle diameter in front bearing: 100 mm
Horizontal milling spindles: 2 pcs.
Spindle distance: 600 mm
Tool magazine: Chain-type, 2x40 stations
Max. tool diameter: 100 mm
Max. tool diameter without adjacent tools: 250 mm
Max. tool length: 350 mm
Max. workpiece weight: 20 kg
Chip-to-chip time: 4.9 s
Automatic workpiece changer: 2-fold
Swivel units for clamping bridge: 2 pcs., NC-controlled
Rotary tables on one clamping bridge: 2 pcs., NC-controlled
Diameter rotary table: 340 mm
Clamping bridge supports
Hydraulic clamping: 250 bar
Additional clamping circuits: 6 pcs.
Air-monitored workpiece clamping
Tool breakage monitoring: Toolinspect
Fully enclosed work area
Automatic working range sliding door
Light in working area
Preparation for central oil/emulsion mist extraction
Chip conveyor
Coolant unit
High pressure pump: 70 bar
Additional control panel for tool management
Warning lamp
Automatic central oil lubrication
Operating voltage: 3x400 V/50 Hz
Machine size (LxWxH): 5150x8650x4200 mm
Machine weight: 20,000 kg
