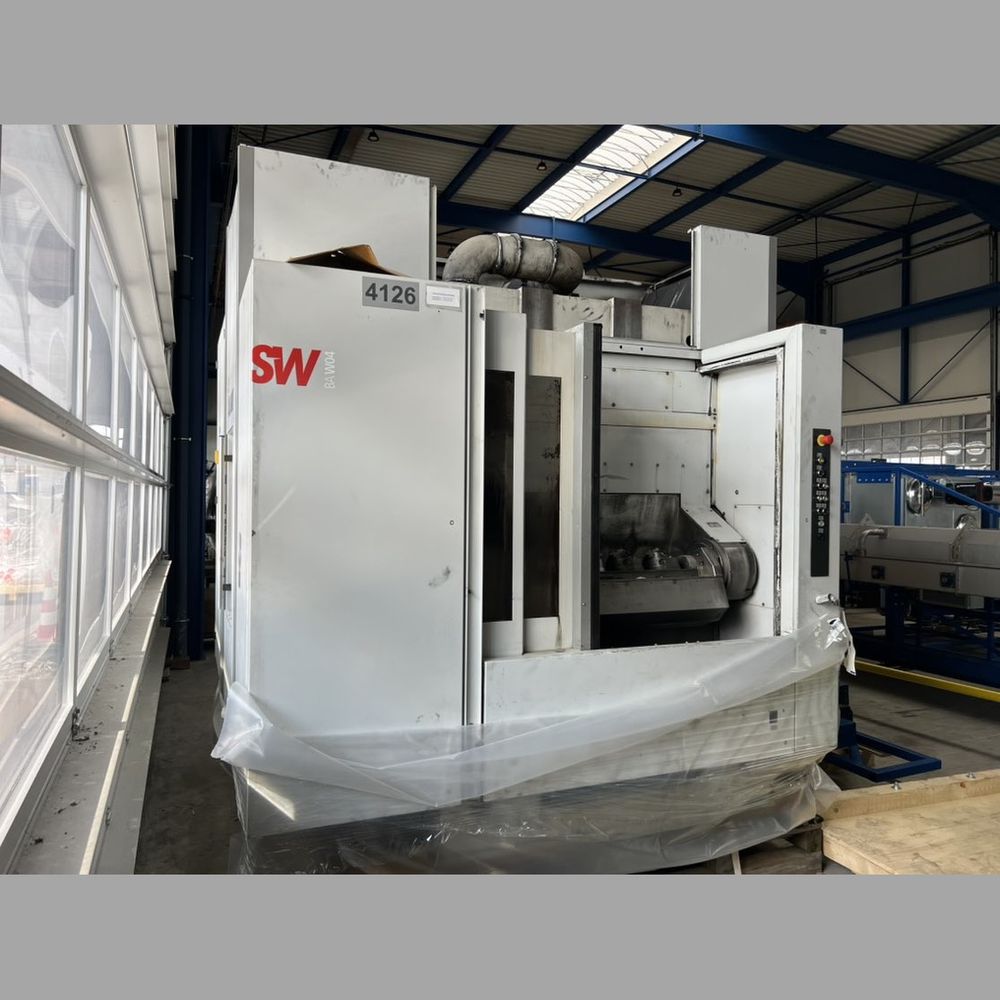

SW (Schwäbische Werkzeugmaschinen) BA W04-42 4 Axis

SW Schwäbische Werkzeugmaschinen BA W04-42
Control: Siemens 840 D solutionline
New in: 2015

Shifts Maschine on approx. (hrs): 1 shift
Description
MILLING
Travel in X 200 mm
Travel in Y 500 (775) mm
Travel in Z 425 mm
Max. rapid traverse in X/Y/Z 70/100/100 m/min
Max. acceleration in X/Y/Z 10/10/22 m/s2
Feed force X/Y/Z 10000/15000/15000 N
Linear glass scales X/Y/Z/A/U/C/W
Linear resp. torque drive X/Y/Z/A/U/C/W
Tool taper HSK-A 63
Max. speed milling spindle 17500 1/min
Max. power at 10-40/100% duty ratio 32 kW
Max. torque at 10-40/100% duty ratio 72 Nm
Spindle diameter in front bearing 80 mm
4 pc. Horizontal milling spindle/-s
Spindle distance 200 mm
Air-monitored tool clamping
Chain-type tool magazine 4x18 stations
Max. tool diameter 80 mm
Max. tool diameter without adjacent tools 150 mm
Max. tool length 300 mm
Max. workpiece weight 10 kg
Chip-to-chip time 2,4 s
Automatic workpiece changer 2 fold
2 pc. Swivel unit for clamping bridge
Swivel unit NC-controlled
8 pc. Rotary table NC-controlled (2x4 pcs.)
Diameter rotary table 125 mm
Bridge dimensions 550x1030 mm
4 pc. Clamping bridge supports
Hydraulic clamping
2 pc. Additional clamping circuit/-s

FURTHER EQUIPMENT
Tool breakage monitoring
Fully enclosed work area
Automatic working range sliding door
Light in working area
Oil-/emulsion mist extraction unit
Scraper-type chip conveyor
Discharge hight chip conveyor 1100 mm
Machine operates/operated with emulsion
Internal coolant supply
Coolant unit with paperband filter
High pressure pump 70 bar
Warning lamp
GENERAL TECHNICAL DATA
Operating voltage 400/50 V/Hz
Total power requirement 156 kVA
Transport dimensions of the machine (LxWxH) approx. 3230 x 3050 x 5100 mm
Space requirement of the whole equipement (LxWxH) approx. 4350 x 3100 x 7000 mm
Machine weight approx. 18000 kg
