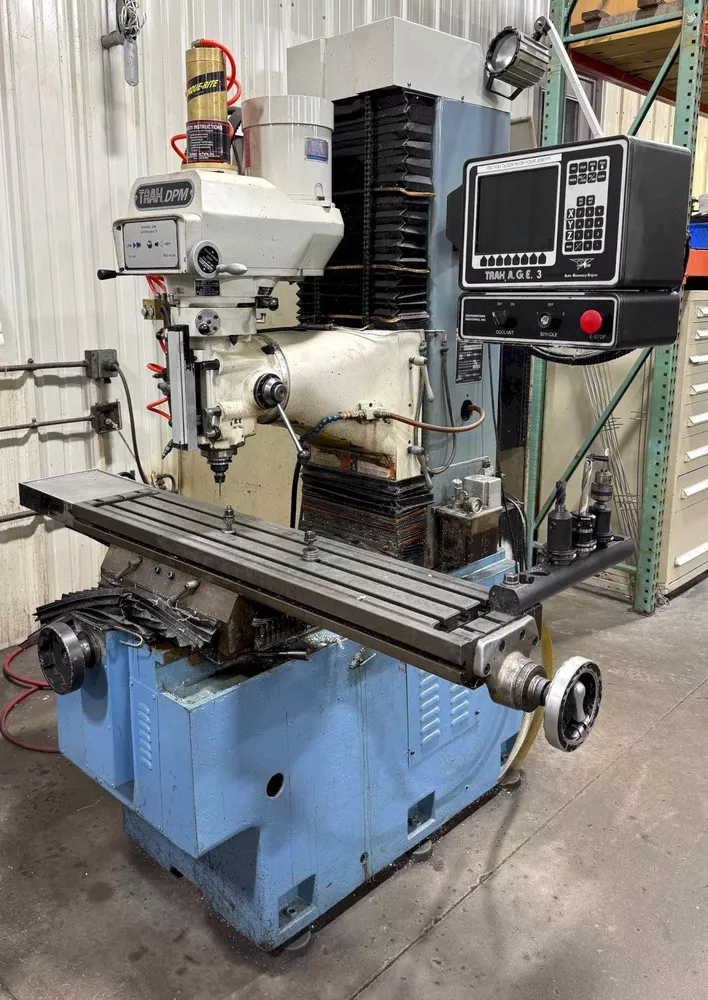

SWI Trak TRAK DPM Vertical 4200 rpm

Ref : 2785814-3-MT

Condition : Used

Manufacturer : SWI Trak

Model : TRAK DPM

Type : Vertical

Spindle Speed : 4200 rpm

Year(s) : 2000

Quantity : 1

Location : Seller or machines location:
AMERICA North (USA-Canada-Mexico)

X axis travel 31"
Y axis travel 17"
Z axis travel 23.5"
Quill travel 5"
Control TRAK A.G.E. 3-axis
Table size 10" x 50"
Max workpiece weight 1320 lbs
Spindle speed 70–4200 rpm
Spindle motor power 3 HP
Spindle taper No. 40
Spindle nose to table 0–24"
Spindle center to column 17.3"
Quill feeds 0.002 / 0.004 / 0.006 IPR
Head swivel ±90°
Torque-Rite power drawbar
Hardened and ground square box ways
Machine dimensions 68" x 64" x 95"
Machine weight 4100 lbs
