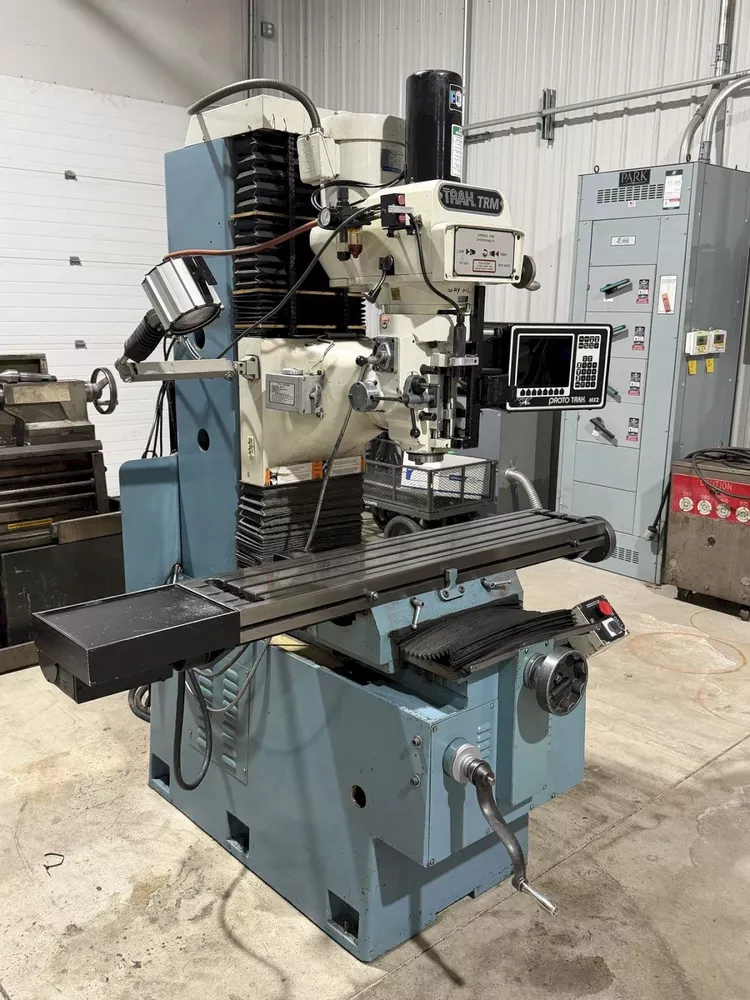

SWI Trak Trak TRM Vertical 4,200 RPM

Ref : 2785876-3-GO

Condition : Used

Manufacturer : SWI Trak

Model : Trak TRM

Type : Vertical

Spindle Speed : 4,200 RPM

Year(s) : 1995

Quantity : 1

Location : Seller or machines location:
AMERICA North (USA-Canada-Mexico)

X-axis travel: 31"
Y-axis travel: 17"
Z-axis travel: 25"
Quill diameter: 3.9375"
Maximum quill travel: 5"
Spindle taper: 40 NST/NMTBA
Spindle speeds: 70 - 4,200 RPM
Spindle motor: 3 HP
Spindle center to column face: 17.3"
Quill feed per revolution in auto feed: 0.002, 0.004, 0.006 IPR
Table size: 50" x 10"
Maximum weight on table: 1,320 lbs
Control: Prot Trak MX2
Equipped with: Kurt Power Drawbar
Machine dimensions LxWxH: 70" x 72" x 90"
Machine weight: 4,500 lbs
