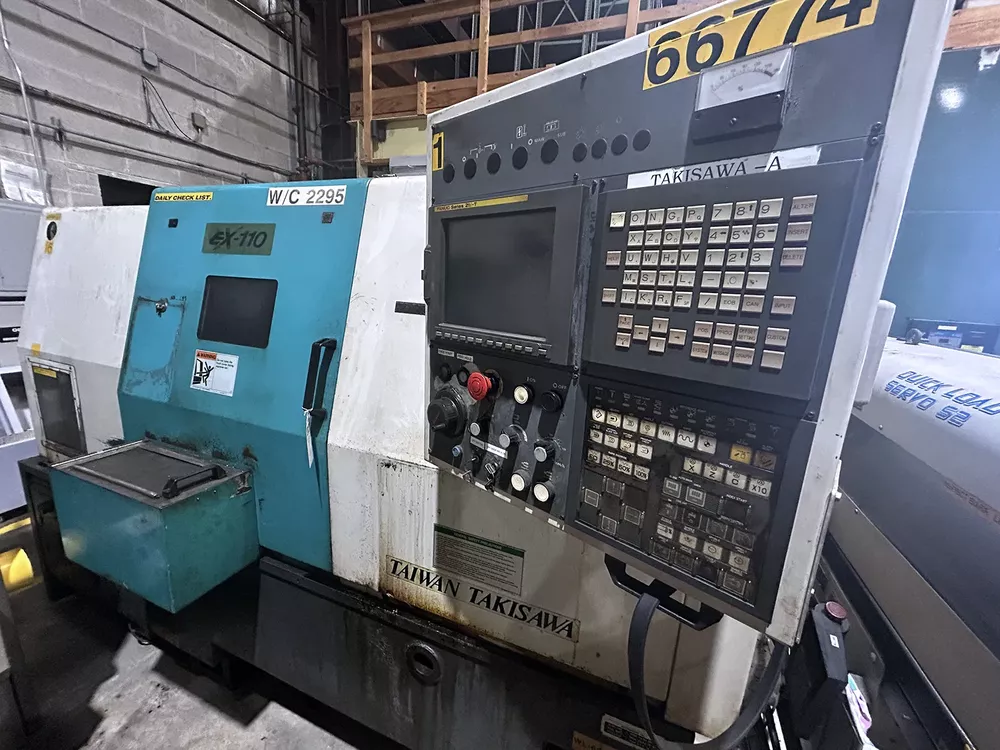

Takisawa CNC CONTROL 3500 RPM EX-110 2 Axis

Ref : 2742006-3-CP

Condition : Used

Manufacturer : Takisawa

Controller : CNC CONTROL

Spindle Speed : 3500 RPM

Model : EX-110

Nb Of Axis : 2 Axis

Year(s) : 2003

Quantity : 1

Location : Seller or machines location:
AMERICA North (USA-Canada-Mexico)

X axis travel 8.5"
Z axis travel 28"
Bar capacity 3"
Maximum turning diameter 15.75"
Maximum turning length 28"
Chuck size 10"
Maximum swing over chuck 19.5"
Tailstock quill diameter 4.25"
Tailstock stroke 5.88"
Tailstock quill center MT#5
Tailstock body travel 22.88"
Spindle speed variable 50–3500 RPM
Spindle nose A2-8
Spindle power 25 HP
Spindle bore 3.38"
Parts catcher
Chip conveyor
LNS Quick Load Servo S2 Bar Feed
Tailstock
