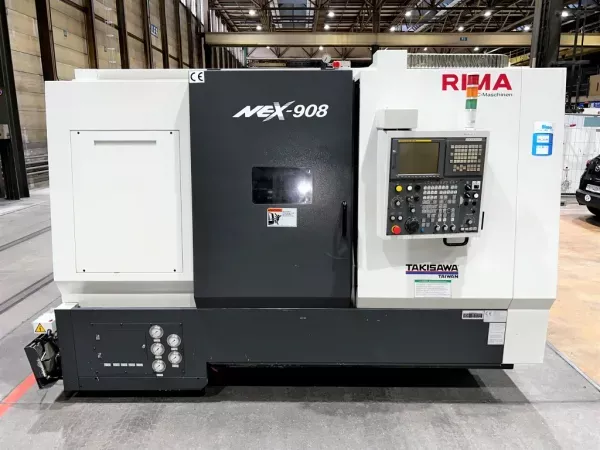

Takisawa CNC CONTROL 5000 rpm NEX-908 4 Axis

X-axis travel: 220 mm
Y-axis travel: 100 mm
Z-axis travel: 630 mm
C-axis indexing: 0.001°
Headstock travel: 610 mm
Rapid traverse headstock: 20,000 mm/min
Feed rate headstock: 24,000 mm/min
Jog feed rate headstock: 0–1260 mm/min
Rapid traverse X-axis: 20 mm/min
Rapid traverse Y-axis: 10 mm/min
Rapid traverse Z-axis: 24 mm/min
Feed rate: 0–10,000 mm/min
Jog feed rate: 0–1260 mm/min
Swing over bed main spindle: 670 mm
Swing over bed sub spindle: 670 mm
Max turning diameter main spindle: 330 mm
Max turning diameter sub spindle: 330 mm
Max turning length main spindle: 551 mm
Max turning length sub spindle: 551 mm
Bar capacity main spindle: 52 (65) mm
Bar capacity sub spindle: 35 (52) mm
Main spindle speed: 5000 rpm
Sub spindle speed: 6000 rpm
Spindle nose main spindle: JIS A2-6
Spindle nose sub spindle: JIS A2-6
Through hole diameter main spindle: 63 mm
Through hole diameter sub spindle: 46 mm
Spindle bearing inner diameter main spindle: 100 (110) mm
Spindle bearing inner diameter sub spindle: 90 (100) mm
Turrets: 1
Turret type: 12 station drum type
Number of tools on turret: 12
Square shank height: 25 mm
Boring bar shank diameter: 40 mm
Indexing time: 0.35 sec
Number of rotary tools: max 12
Rotary tool speed: 5000 rpm
Max diameter of tool shank: 20 mm
Tool spindle bearing inner diameter: 35 mm
Machine dimensions: 3020 x 1820 x 2163 mm
Machine weight: 6000 kg
