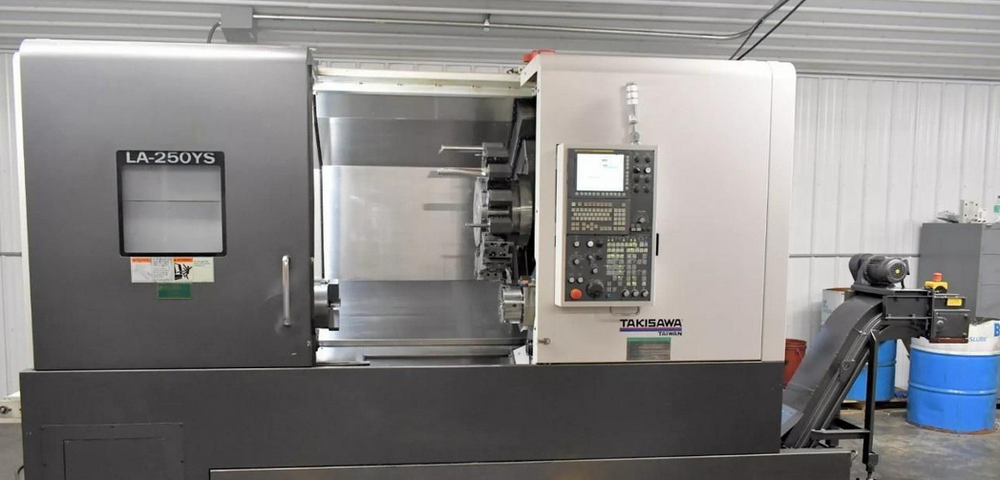

Takisawa Fanuc 0i-TF CNC Control 3,500 RPM LA-250YS 5 Axis

X-Axis Travel: 10.6″
Y-Axis Travel: 3.92″
Z-Axis Travel: 31.49″
B-Axis Travel (Sub Spindle): 28.93″
C Axis Index: 0.001°
Rapid Traverse (X/Y/Z): 787 / 393 / 797 ipm
Number of Axes: 6
CNC Control: Fanuc 0i-TF
Fanuc 0i-TF CNC Control
Live Tooling
Y Axis
Sub Spindle
Chip Conveyor
Coolant Tank & Pump
Parts Conveyor
Tool Presetter
Spindle Chiller
Miscellaneous Static Tooling
(2) Straight Live Tool Holders
(2) Right Angled Live Tool Holders
Heavy Duty Box Way Machine
Bar Capacity: 3″
Swing: 23.6″
Turning Diameter: 14.6″
Main Spindle Speed: 3,500 RPM
Main Motor: 30 HP
Spindle Nose: A2-8
Sub Spindle Speed: 3,500 RPM
Sub Spindle Motor: 15 HP
Sub Spindle Chuck: 8″
Sub Spindle Bar Capacity: 2″
Sub Spindle Nose: A2-6
Live Tooling Speed: 4,000 RPM
Live Tooling Motor: 10 HP
Chuck Size: 10″
Turret Capacity: 15 Stations
Machine Dimensions: 149″ x 73″ x 98″
Machine Weight: 17,800 lbs
