Takisawa Fanuc 21i-TB 4,000 RPM EX-108 2 Axis

Ref : 2725851-3-AW

Condition : Used

Manufacturer : Takisawa

Controller : Fanuc 21i-TB

Spindle Speed : 4,000 RPM

Model : EX-108

Nb Of Axis : 2 Axis

Year(s) : 2005

Quantity : 1

Location : Seller or machines location:
AMERICA North (USA-Canada-Mexico)

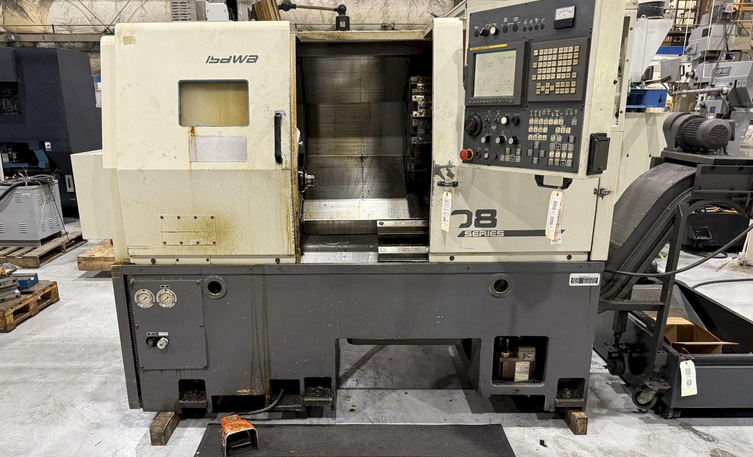

Takisawa EX-108
2005

CNC Control: Yes
Control Type: Fanuc 21i-TB
Number of Axes: 2
Swing: 15.5″
Turning Diameter: 12.59″
Center Distance: 20.86″
Chuck Size: Collet
Bar Capacity: 2.04″
X-Axis Travel: 7″
Z-Axis Travel: 20.86″
Spindle Nose: A2-6
Spindle Speed: 4,000 RPM
Main Motor Power: 15 HP
Turret Capacity: 12
Tailstock: Yes
Live Tooling: No
Y Axis: No
Sub Spindle: No
Machine Dimensions: 88″ x 65″ x 77″
Machine Weight: 9,500 lb

Fanuc 21i-TB CNC Control
Chip Conveyor
Coolant Tank and Pump
Tailstock
Tool Presetter
