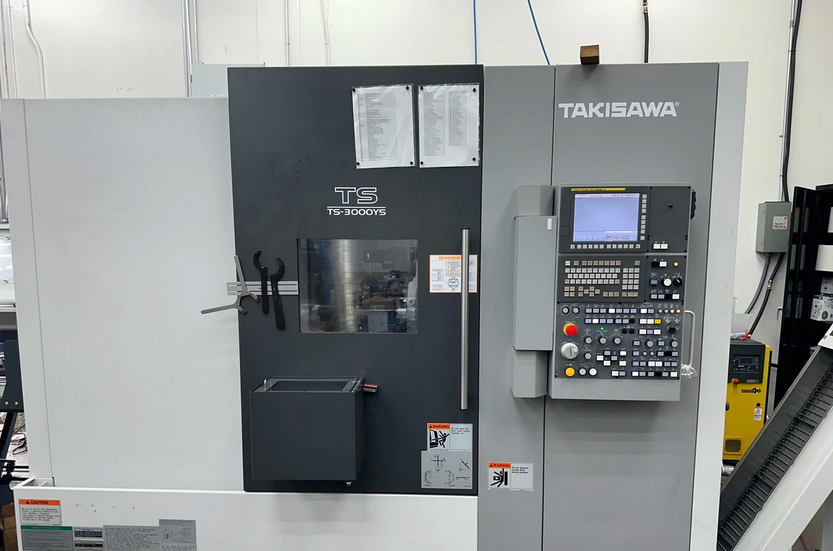

Takisawa FANUC 32i Model B 5000 RPM TS-3000 YS 4 Axis

X-Axis Travel: 261 mm
Y-Axis Travel: -50 to +70 mm
Z-Axis Travel: 630 mm
C-Axis: 0.001
Turning Length: 545 mm
Swing Diameter: ø292 mm
Bar Work Capacity: 67 mm
Turret Tool Holder: BNT-40
Turret Number of Tool Slots: 12
Speed Driven Tools: 6000 RPM
Drive Power Driven Tools: 7.5/3.7 kW
Main Spindle Speed: 5000 RPM
Main Spindle Drive Power: 15/11 kW
Main Spindle Bore: ø77 mm
Counter Spindle Speed: 6000 RPM
Counter Spindle Drive Power: 11/7.5 kW
Counter Spindle Bore: ø53 mm
Counter Spindle Travel: 665 mm
Renishaw Probing System
LNS QLS80 S2 Bar Feeder
Chip Conveyor
Part Catcher for Right Spindle (Max ø80 mm, L 120 mm)
Air/Water Thru Spindle (Counter Spindle)
Driven Tools Included
Rated Power: 31 kVA
Lathe Dimensions: L86" x W11" (170" with chip conveyor) x H91"
Bar Feed Dimensions: L66" x W80" x H54"
Approximate Weight: 15,000 lbs with all equipment
CNC Controller: FANUC 32i Model B
