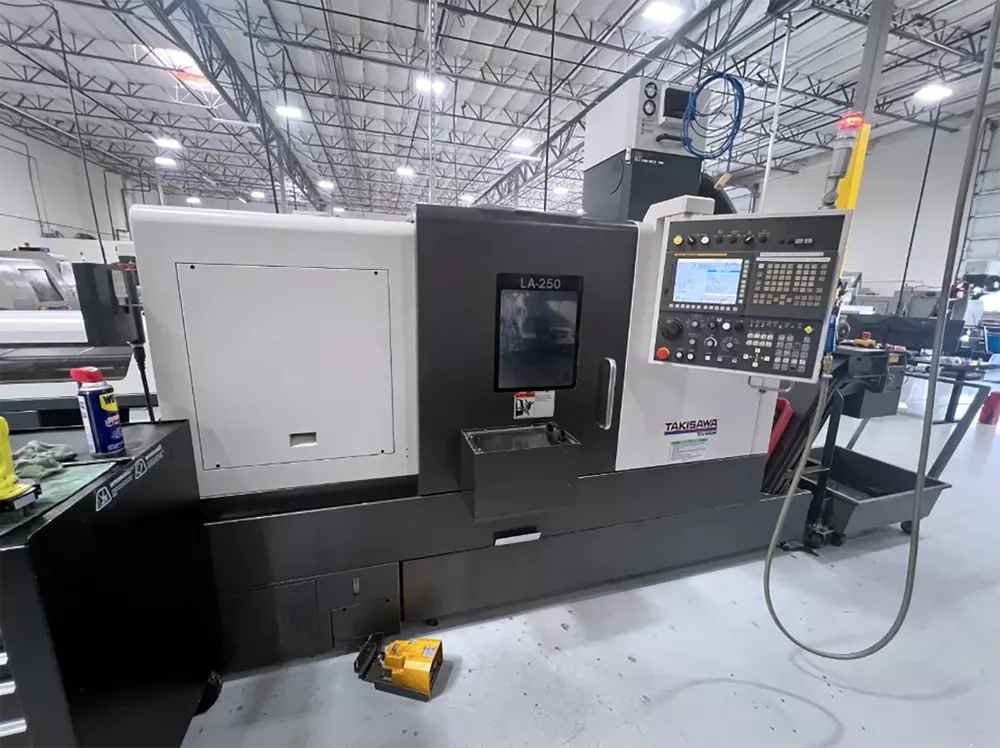

Takisawa Fanuc Oi-TF 3,500 rpm LA-250 2 Axis

X-axis stroke: 10 in
Z-axis stroke: 31.5 in
Control: Fanuc Oi-TF
Bar capacity: 3 in
Spindle speed: 3,500 rpm
Spindle nose: A2-8
Spindle thru-hole diameter: 3.4 in
Spindle bearing diameter: 4.7 in
Spindle motor (30 min/continuous): 25/20 HP
Max turning diameter: 17.7 in
Max turning length: 30.1 in
Distance between centers: 34.6 in
Standard chuck diameter: 10 in
Turret stations: 12
Machine weight: 10,925 lbs
Machine size (L×W×H): 115 × 77 × 71 in

Tailstock
Chip conveyor
Tool holders
Chuck foot switch
Leveling pads (1 set)
Auto lubrication system
Instruction manual
