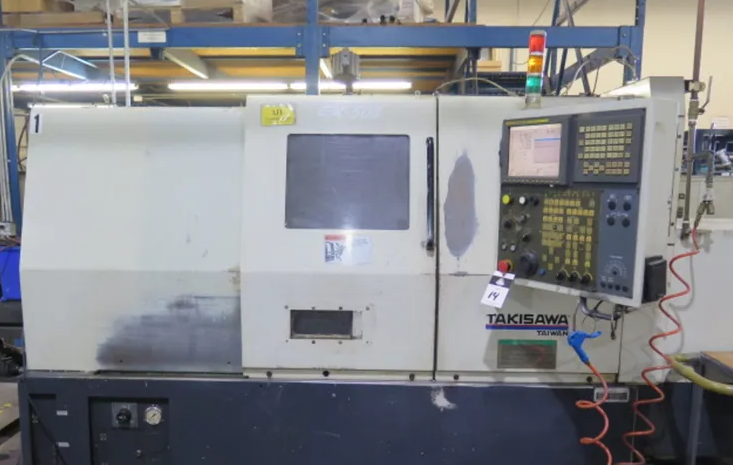

Takisawa Fanuc Series 18i-TB 4,000 RPM EX-508 2 Axis

TAKISAWA EX-508
2008

CNC Control: Fanuc Series 18i-TB
Swing: 16.5"
Max. Turning Diameter: 11.8"
Max. Turning Length: 15.3"
Headstock: 2
Spindle Speeds: 4,000 RPM
Minimum Indexing Angles: 0.001°
Spindle Nose: JIS A2-6
Main Spindle Thru Hole: 2.48"
Sub Spindle Thru Hole: 1.81"
Sub Spindle Travel: 23.6"
Rapid Traverse: 944 IPM
Feed Rate: 944 IPM
Jog Feed Rate: 0 - 49.6 IPM
Turret: 12-Station Drum Type
Pedals: 2
Oil Cooler: Habor
Chip Conveyor
Chuck Size: 8" 3-Jaw
Main Spindle Collet: S20
Sub Spindle Collet: 16C
Live Toolholder: Straight
Live Toolholder: 90°
Static Toolholder: Boring Bar
Static Toolholder: Turning
Dimensions (approx.): 120" x 75" x 75"
Weight (approx.): 4,500 lbs
Electrics: 220 Volts
Phase: 3
Cycle: 50-60 Hz
Amps: 10
