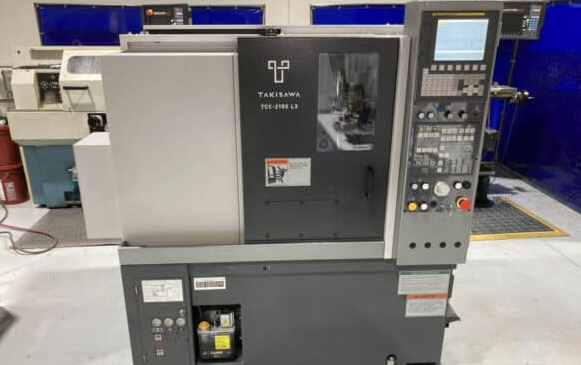

Takisawa Fanuc Series Oi-TF CNC Control 4100 RPM TCC-2100 L3 2 Axis
Ref :
2755597-3
Condition :
Used
Manufacturer :
Takisawa
Controller :
Fanuc Series Oi-TF CNC Control
Spindle Speed :
4100 RPM
Model :
TCC-2100 L3
Nb Of Axis :
2 Axis
Year(s) :
2022
Quantity :
1
Location :
Seller or machines location:
AMERICA North (USA-Canada-Mexico)
AMERICA North (USA-Canada-Mexico)
X Axis / Z Axis Rapid Traverse Rate 944 IPM / 1181 IPM
Fanuc Series Oi-TF CNC Control
Bar Capacity 2.0”
Max Turning Diameter 12.59”
Max Turning Length 11.45”
Spindle Nose A2-6
Spindle Speed 4100 RPM
Spindle Motor 15 HP (15 min) / 10 HP (continuous)
12-Station Turret
8” Kitagawa B-208 Chuck
Programmable Chuck Open/Close
Manual Tailstock with M Function Quill (100mm / MT#4)
Takisawa Tool Setter (Swing Arm Type)
Machine Dimensions 56” x 60” x 67”
Machine Weight 6,000 lbs
