TC 18-46

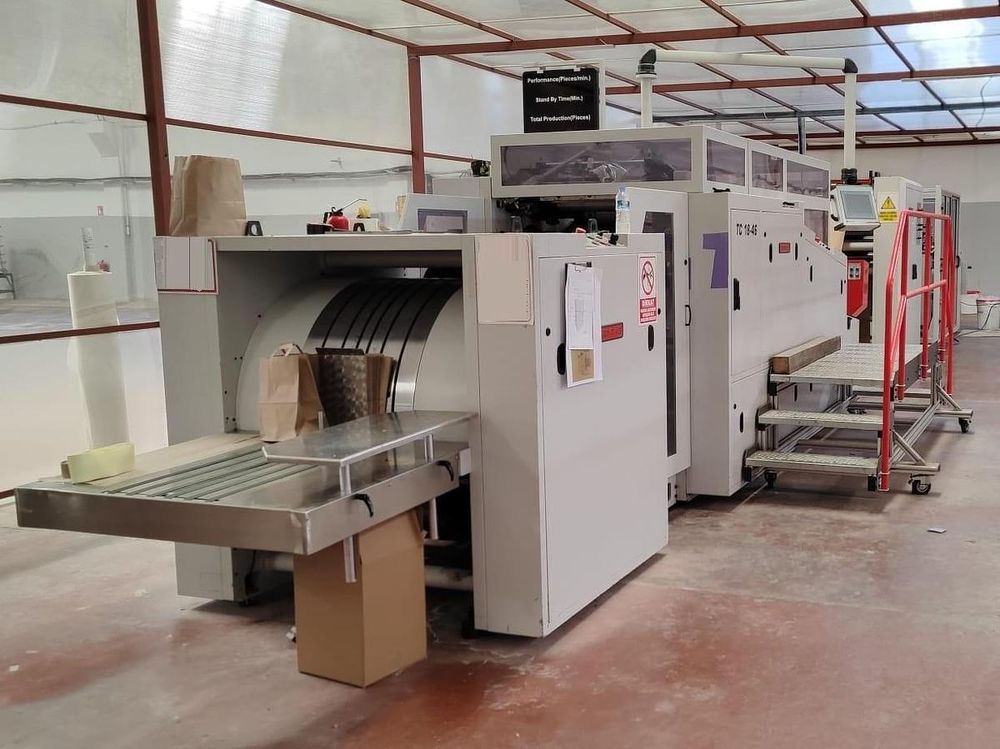

SOMTAS TC 18-46 FLAT HANDLE (Servo) - Square bottom paper bag making machine with FLAT handles
Condition Used (visible in production)
Cutting lenght (min - max) 360- 770 mm
Bag width (min - max) 180 - 450 mm
Bottom width (min - max) 80 - 230 mm
Max. paper reel diameter 1250 mm
Max paper reel width 1350 mm
Paper reel core diameter 76 mm
Capacity (maximum) 150 bag/mln

FLAT HANDLE & HANDLE PATCH:
Patch Width: 160mm
Patch Cutting Length: 60mm (Fixed)
Patch Paper Weight: 60-100 g/m2
Patch Paper Roll Dia.: Max. 1,000mm
Patch Paper Roll Stand: 2 stands
Patch Paper Roll ID.: 76mm Dia. (Core Inside Dia.)
Handle Paper Width: 70mm in flat, folded 4 times into 18mm Width
Handle Paper Cutting Length: 330mm
Material of Handle: Flat paper : 80 to 100 g/m2
Handle Paper Roll Dia.: Max. 1,000mm
Handle Paper Roll Stand: 2 stands
Handle Paper Roll ID.: 76mm Dia. (Core Inside Dia.)
Flat Handle IN/Flat Handle OUT production is possible
Compressed air requirements Max 150 L/h
Pressure: Min-6 bar, Max-8 bar

Electrical requirements:
Consumtion: 35Kw
Voltage: 3 phase 400 VAC/1 phase 230 VAC
Frequency: 50-60 Hz
Electric Main Fuse: 3X63A Main Phase
Protection Earth Less Than 5 Ohm
| Cable: 4X16mm2 + 10mm2 / max 25 meters
Temperature:+10 min +30 max
