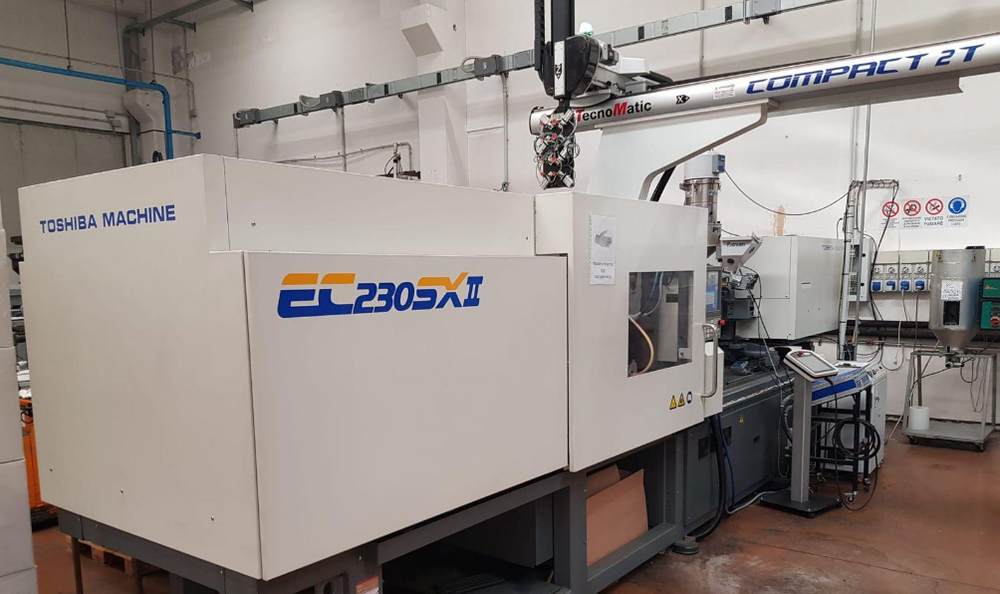

Toshiba EC230SXII 230 T

Injection unit i8 – Screw 50 mm

CLAMPING UNIT
Clamping force: 2250 kN (230 t)
Tie bar spacing (H×V): 610 × 560 mm
Platen size (H×V): 880 × 830 mm
Moving platen stroke: 550 mm
Max daylight: 1230 mm
Mold height min–max: 250–680 mm
Ejector force: 49 kN (5.0 t)
Ejector stroke: 130 mm

INJECTION UNIT – 50 mm
Screw diameter: 50 mm
Shot volume: 392 cm³
Shot weight PS: 361 g
Shot weight PE: 286 g
Max injection pressure: 200 MPa
Max holding pressure: 200 MPa

INJECTION SPEED / RATE
STD speed: 250 mm/s
STD rate: 490 cm³/s

HIGH DUTY speed: 160 mm/s
HIGH DUTY rate: 314 cm³/s
HIGH SPEED speed: 350 mm/s
HIGH SPEED rate: 687 cm³/s

PLASTICIZING
Plasticizing capacity PS: 160 kg/h
Screw speed: 255 rpm
Screw torque: 1421 Nm
Nozzle contact force: 29.4 kN (3.0 t)

ELECTRICAL
Main breaker STD: 125 A
Main breaker HIGH DUTY: 125 A
Main breaker HIGH SPEED: 175 A
Transformer: 75 kVA
Heater capacity: 15.2–16 kW

DIMENSIONS & WEIGHT
Length: 6.4 m
Width: 1.7 m
Height: 2.0 m
Weight: 9.9 t
