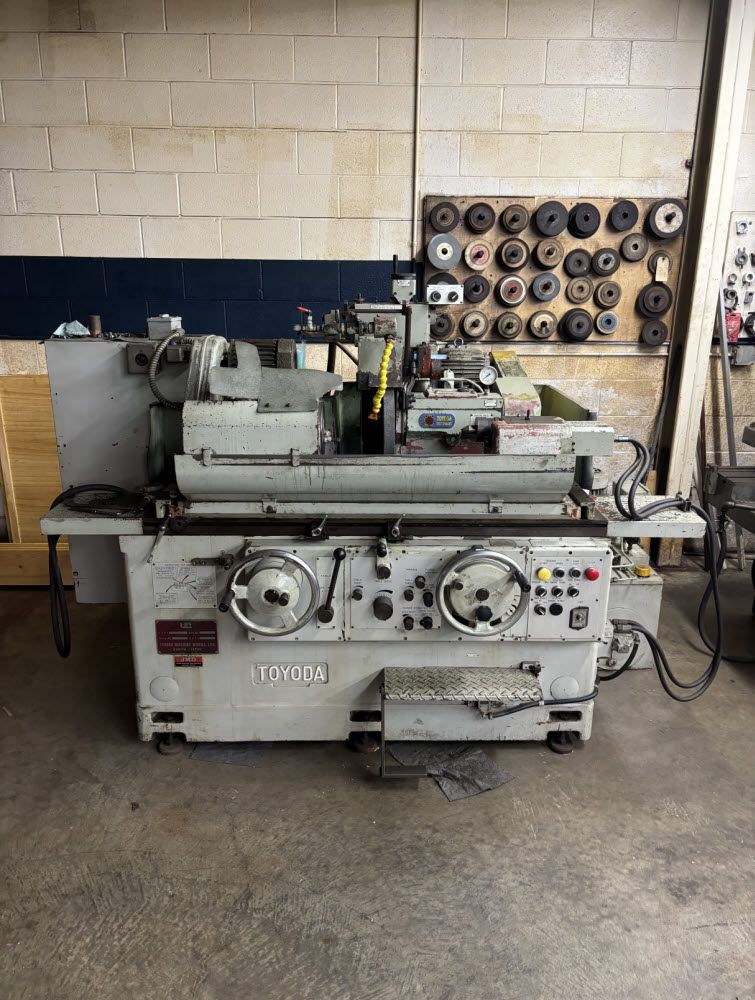

Toyoda GOP32x50

Max swing over table: 12.6"
Distance between centers: 20"
Max load between centers: 330 lbs
Table swivel: 12.5°
Table traverse speed: 2 – 157 ipm
Table feed per handwheel turn: 0.78"
Grinding wheel size: 16" x 3" x 5"
Wheel speeds: 1570 rpm
Wheel speeds: 1845 rpm
Wheelhead stroke: 7.8"
Handwheel infeed stroke: 6.3"
Rapid infeed stroke: 1.6"
Automatic infeed at reversal: 0.0001" – 0.0016"
Automatic plunge infeed
Auto plunge infeed with stop: 0 – 0.0315"
Handwheel graduation: 0.0001"
Handwheel feed per turn: 0.040"
Workhead taper: #4 MT
Workhead spindle speeds: 30 – 360 rpm
Spindle bore: 1.1"
Tailstock taper: #4 MT
Tailstock quill travel: 1"
Tailstock power actuated
Weight: 5060 lbs
Dimensions: 84" x 64" x 57"
Hydrostatic wheelhead bearings
Grinding wheel: 16" x 3" x 5"
Hydraulic table traverse
Automatic infeed
Automatic plunge infeed
Power rapid wheelhead advance and retraction
Sparkout timer
Adjustable table dwell
External hydraulic system
Dual live/dead workhead spindle
Hydraulic tailstock
Coolant tank with magnetic separator
Electrical system on machine
Voltage: 220 V
