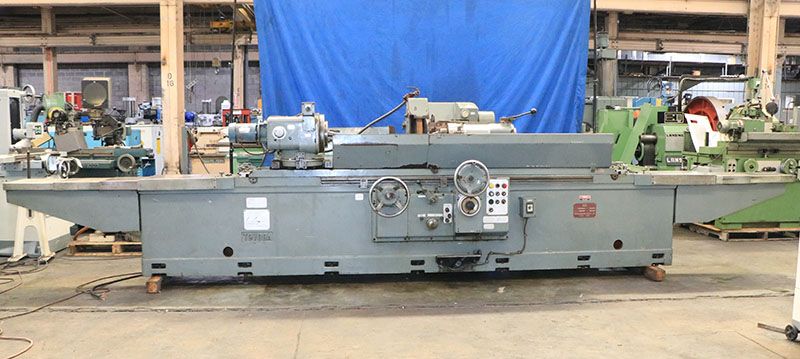

Toyoda GUP40-180

Max Swing Over Table 19.685 in
Distance Between Centers 71 in
Max Load Between Centers 1100 lb
Table Swivels CCW 8° / CW 3°
Longitudinal Table Traverse Speed 2 to 157 IPM
Movement per Turn of Handwheel (2-Step) 0.65 in / 0.65 in
Wheelhead Swivels ±30°
Total Feed Stroke 11.6 in
Handwheel Infeed Stroke 6.5 in
Additional Stroke by Sliding on Sub-Slide Base 3.5 in
Automatic Rapid Infeed Stroke 1.6 in
Automatic Infeed at Table Reversals 0.0001 to 0.0016 in
Automatic Plunge Infeed Yes
Auto Plunge Infeed with Positive Stop 0 to 0.0315 in
Movement per Graduation of Handwheel 0.0001 in
Movement per Turn of Handwheel 0.040 in
Grinding Wheel Size 20 in × 3 in × 8 in
Minimum Wheel Diameter 12 in
Max Wheel Width 4.4 in
Wheel Speeds 1120 / 1300 / 1525 RPM
Max Wheel Speed 6560 SFPM
Workhead Swivels CCW 90° / CW 10°
Workhead Spindle Taper #5 MT
Spindle Bore Diameter 1.57 in
Infinitely Variable Spindle Speeds 1 to 150 RPM
Tailstock Spindle Center #5 MT
Tailstock Quill Travel 1.18 in
Approx Machine Weight 13200 lb
Approx Machine Dimensions 189 in × 76 in × 58 in
Toyoda "Stat" Hydrostatic Wheelhead Bearings
Fully Automatic Grinding Cycle
Hydraulic Table Traverse
Automatic Infeed
Automatic Plunge Infeed
Power Rapid Wheelhead Advance and Retraction
Sparkout Timer
Adjustable Table Tarry
External Hydraulic System 2 HP Motor
Infinitely Variable Workhead Spindle Speeds
Dual Live/Dead Workhead Spindle
Pushbutton for Inching/Jog Workhead
Grinding Wheel Motor 7.5 HP 3/60/230-460 V
Total Power Required 15 KVA
External Coolant Tank with "Gusher" Pump
Center in Workhead
Toyoda Manual for the Machine
