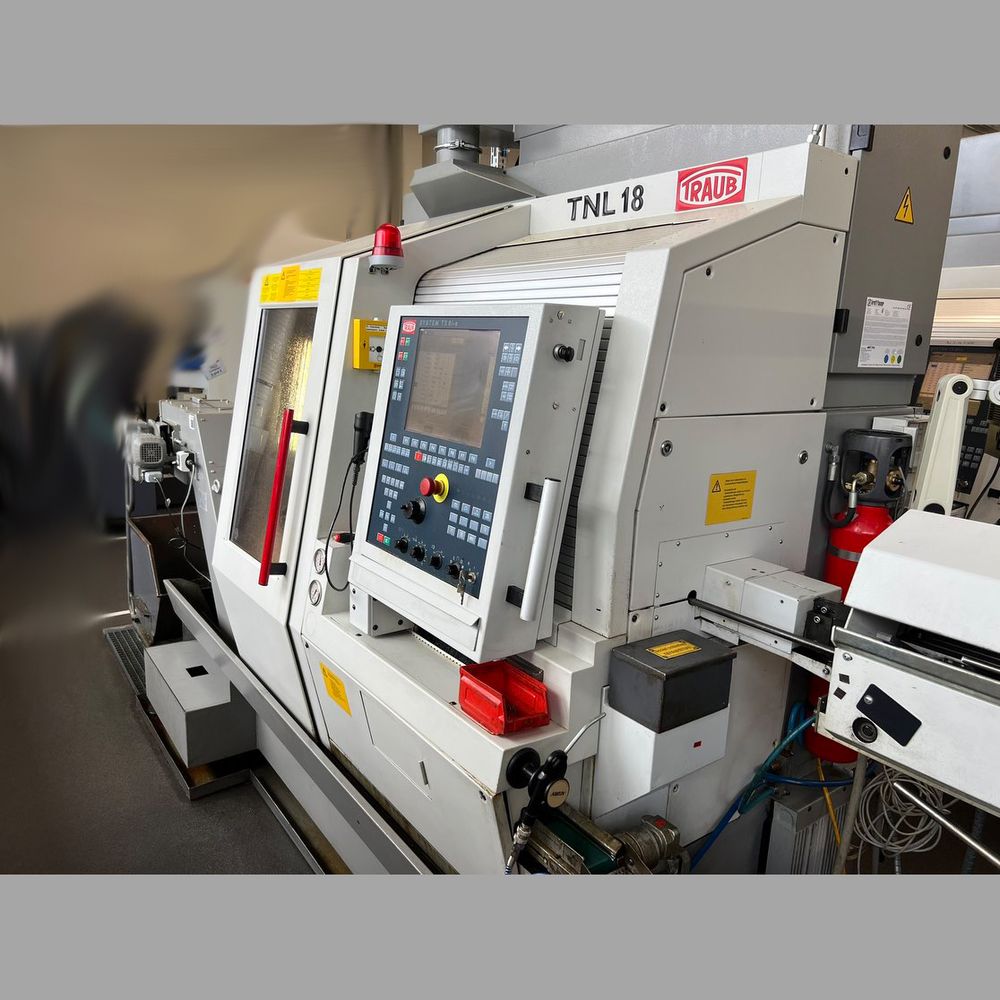

Traub CNC CONTROL 10,000 1/min TNL 18 4 Axis

X Axis Travel Main Spindle -
Y Axis Travel Main Spindle -
Z Axis Travel Main Spindle 40 m/min rapid
C Axis Travel Main Spindle -
X Axis Travel Opposed Spindle 100 mm
Z Axis Travel Opposed Spindle 262 mm
C Axis Travel Opposed Spindle -
Max Speed Main Spindle 10,000 1/min
Max Power Main Spindle 3.7/2.2 kW (10-40/100% duty)
Max Torque Main Spindle 23.5/14 Nm (10-40/100% duty)
Spindle Bore Main Spindle 20 mm
Max Speed Opposed Spindle 10,000 1/min
Max Power Opposed Spindle 3.7/2.2 kW (10-40/100% duty)
Max Torque Opposed Spindle 23.5/14 Nm (10-40/100% duty)
Spindle Bore Opposed Spindle 20 mm
Upper Turret Stations 8
Upper Turret Driven Tools 8
Upper Turret Tool Reception 45 mm
Upper Turret Speed Tool Drive 12,000 1/min
Upper Turret Axis X/Y/Z/H
Upper Turret Travel X 120 mm
Upper Turret Travel Y -40 to +25 mm
Upper Turret Travel Z 250 mm
Upper Turret Max Rapid Traverse X/Y/Z 20/20/40 m/min
Lower Turret Stations 8
Lower Turret Driven Tools 8
Lower Turret Tool Reception 45 mm
Lower Turret Speed Tool Drive 12,000 1/min
Lower Turret Axis X/Y/Z/H
Lower Turret Travel X 120 mm
Lower Turret Travel Y -20 to +40 mm
Lower Turret Travel Z 250 mm
Lower Turret Max Rapid Traverse X/Y/Z 20/20/40 m/min
Fully Enclosed Work Area
Light in Working Area
Oil-/Emulsion Mist Extraction Unit
Slat Band Chain Chip Conveyor
Machine Operates/Operated with Oil
Coolant Unit with Paperband Filter
High Pressure Pump 50 bar
Automatic CO2-Fire Extinguishing System
Part Outfeed Conveyor
Finish-Part Pick-Up Unit
Bar Loader/Magazine FMB Minimac 20
Max Bar Length 3200 mm
Total Power Requirement 24 kVA
Machine Dimensions 3060 x 1460 x 2250 mm
Machine Weight 4000 kg
