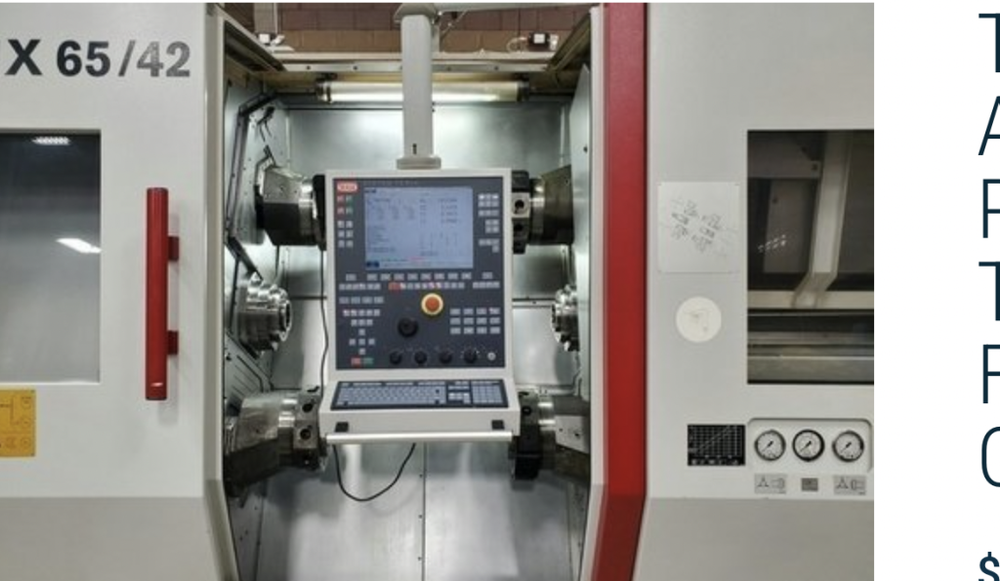

Traub CNC CONTROL Variable Speed TNX 65/42 15 Axis

(4) X-Y-Z turrets with 10 positions each
Up to 20 tools per turret
Main spindle thru hole – 65 mm
Sub spindle thru hole – 65 mm
Sub spindle with coolant flush

TX 8i-S control (Mitsubishi/Traub with Mitsubishi drives and motors)
Foot pedal control for clamp/unclamp of spindle chucks
Servo driven gantry receiver
Hydraulic swivel with pneumatic finished part and bar remnant gripper
Finished part conveyor belt
RESY paper band coolant filter
Knoll coolant tank with BKW refrigerated coolant temperature control
20 Bar high pressure coolant pump
8 Bar low pressure coolant pump
Knoll chip conveyor

FMB Turbo 5-55 magazine bar feeder (new in 2010)
2 Single stick turning tool holders
2 Double stick turning tool holders
1 Cut-off tool holder
1 Overdriven double radial live ER collet tool holder
1 Overdriven radial live ER collet tool holder
4 Radial live ER collet tool holders
1 Radial live end mill tool holder
1 Angle adjustable live ER collet tool holder
2 Radial live shell mill tool holders
2 Axial live end mill tool holders
6 Axial live ER collet tool holders

43 Additional tool holders (on supplemental list)
Hainbuch main spindle collet chuck
Rohm sub spindle 2 jaw chuck
2 Spare sets of Z-axis ball screws and bearing packs
New spare amplifier boards
Spare ball screws and bearing packs
Machine stripped, steam cleaned internally and externally
Coolant tank, filter, and chiller steam cleaned
Chip conveyor steam cleaned
Coolant filter float replaced

Worn wires and hydraulic lines replaced
Complete hydraulic system replaced (motor, pump, regulator)
Main spindle hydraulic chuck automatic pressure regulator replaced
Ball screws and bearing packs replaced on X3, Y3, X4
Worn turret live tool drive parts replaced
All rubber way wipers replaced
All brass wear parts on sliding way covers replaced
All telescoping way covers on T1, T2, T3, T4 replaced
Slidable way covers refinished or replaced
New filters
New batteries
