Traub Traub TX 8i-s 10000 1/min TNL 18 3 Axis
EUROPE (Western and Northern)

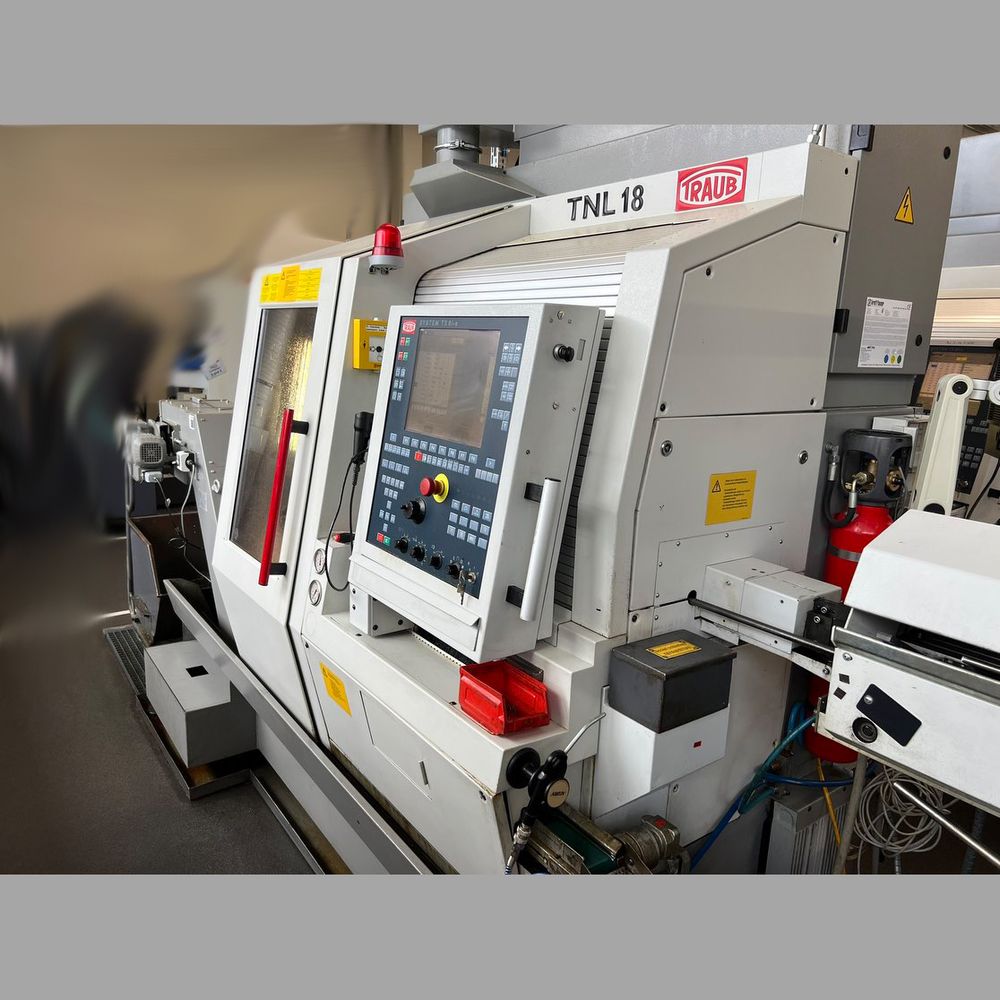

TRAUB TNL 18
Control: Traub TX 8i-s
New in: 2011
Condition: Used Machine
Spindle on approx. (hrs): 29253
Programme run approx. (hrs): 36956
TURNING
Max. turning diameter 20 mm
Max. speed main spindle 10000 1/min
Max. power main spindle at 10-40/100% duty ratio 3,7/2,2 kW
Max. torque main spindle at 10-40/100% duty ratio 23,5/14 Nm
Spindle bore main spindle 20 mm
Axis at main spindle unit Z/C
Headstock stroke main spindle 205 mm
Max. rapid traverse in X/Y/Z main spindle unit -/-/40 m/min
Hollow clamping cylinder at main spindle
Max. speed opposed spindle 10000 1/min
Max. power opposed spindle at 10-40/100% duty ratio 3,7/2,2 kW
Max. torque opposed spindle at 10-40/100% duty ratio 23,5/14 Nm
Spindle bore opposed spindle 20 mm
Axis at opposed spindle unit X/Z/C
Travel in X/Y/Z opposed spindle unit 100/-/262 mm
Max. rapid traverse in X/Y/Z opposed spindle unit 20/-/40 m/min
Upper turret
No. of stations/driven 8/8
Tool reception in turret 45 mm
Speed tool drive 12000 1/min
Axis in turret X/Y/Z/H
Travel in X/Y/Z 120/-40 bis +25/250 mm
Max. rapid traverse in X/Y/Z 20/20/40 m/min
Lower turret
No. of stations/driven 8/8
Tool reception in turret 45 mm
Speed tool drive 12000 1/min
Axis in turret X/Y/Z/H
Travel in X/Y/Z 120/-20 bis +40/250 mm
Max. rapid traverse in X/Y/Z 20/20/40 m/min
FURTHER EQUIPMENT
Fully enclosed work area
Light in working area
Oil-/emulsion mist extraction unit
Slat band chain chip conveyor
Machine operates/operated with oil
Coolant unit with paperband filter
High pressure pump 50 bar
Automatic CO2-fire extinguishing system
Part outfeed conveyor
Finish-part pick-up unit
Bar loader/magazine make FMB minimag 20
Max. bar length 3200 mm
ACCESSORIES
2 pc. Collet chuck
1 Set Tool holder for turning tools
1 Set Tool holder for driven tools
1 Set Spare Parts for the machine (i.e. Mitsubishi Power modules, etc.)
1 Set Changing tubes
GENERAL TECHNICAL DATA
Total power requirement 24 kVA
Machine dimensions (LxWxH) approx. 3060 x 1460 x 2250 mm
Machine weight approx. 4000 kg
