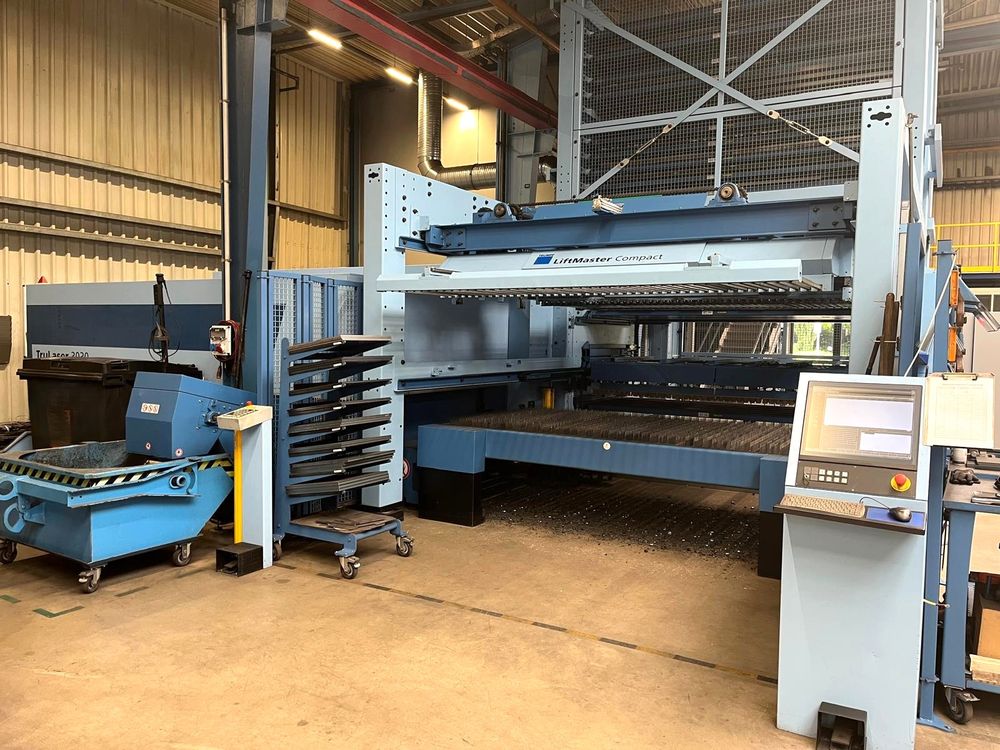

Trumpf LIFTMASTER COMPACT (AL34) / TRUSTORE 3030 (A12) Lifting

Max sheet format loading: 3000 x 1500 mm
Min sheet format loading: 1000 x 1000 mm
Max sheet thickness loading: 25 mm
Max sheet weight loading: 900 kg
Min part size unloading: 150 x 150 mm
Max sheet thickness unloading rake: 25 mm
Max sheet thickness unloading belt prongs: 15 mm
Max sheet weight unloading: 900 kg
Sheet size capacity: 3048 x 1524 mm
Stack height loading station: 90 mm
Max stack weight loading station: 3 t
Prong spacing unloading rake: 67 mm
Thin sheet separation range: 0.8 – 2.0 mm

Loading station
Movable unloading rake
Replaceable prongs
Finished part pallet
Extended pallet removal station
Peeling unit
Double sheet detection
Synchronous loader
Cleaning brush for slats
Safety devices for storage connection
Storage interface

TruStore 3030 storage system
Storage safety device
Single or double tower configuration
Max system height: 8250 mm
Loading height options: 90 mm
Loading height options: 170 mm
Load capacity per pallet: 3 t
Start post
Column covering
Rack server with 19" touchscreen
Storage connection interface
Switch cabinet lighting
Lifting chain
Energy supply chain
Single tower option system height: 6090 mm
Integration with LiftMaster Compact
Storage compartment extension
Preparation for additional storage shelves
Reduced free drive of rake frame
Input/output scissor cart
Front-end cart version
Scissor table
Storage compartment height: 170 mm
Storage compartment height: 90 mm
Forklift-accessible pallet base for finished parts
Reduced loading height by 10 mm
Unpacking table for self-assembly
Unpacking table load capacity: 3 t
