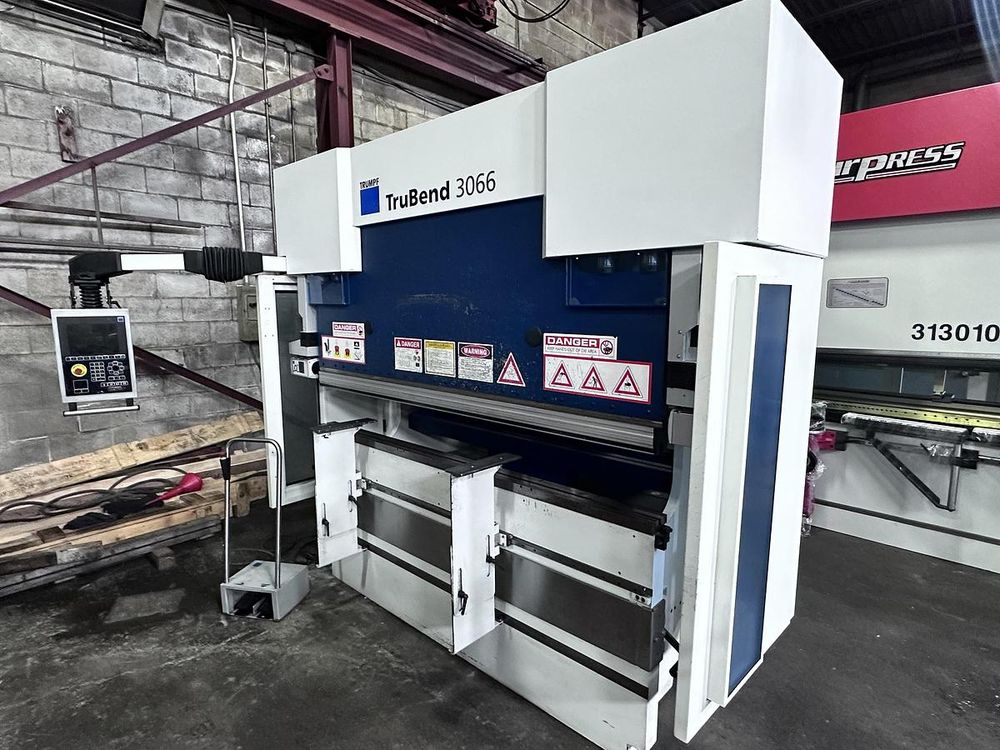

Trumpf TRUBEND 3066 73 tons

Bend Capacity: 73 tons
Overall Bending Length: 82"
Distance Between Frames: 93"
Stroke: 7.87"
Open Height: 14"

Y Rapid Speed: 472 in./min.
Y Working Max Speed: 35 in./min.
Y Return Traverse Speed: 472 in./min.
X Axis Speed: 1181 in./min.
Z Axis Speed: 2362 in./min.
Y Axis Position Accuracy: 0.0004 in.
X Axis Position Accuracy: 0.002 in.
R Axis Position Accuracy: 0.004 in.
Y Axis Stroke Working Range: 8"
X Axis Travel Path: 24"
R Axis Travel Path: 6"

DELEM 65T CNC Control
4-Axis Back Gauge (X, R, Z1, Z2)
WILA New Standard Hydraulic Upper Clamping
Self Acting Crowning System
2 Front Linear Supports
Multifunction Foot Switch

Overall Dimensions: 102"L x 65"D x 93"H
Approximate Weight: 12,456 lbs.
