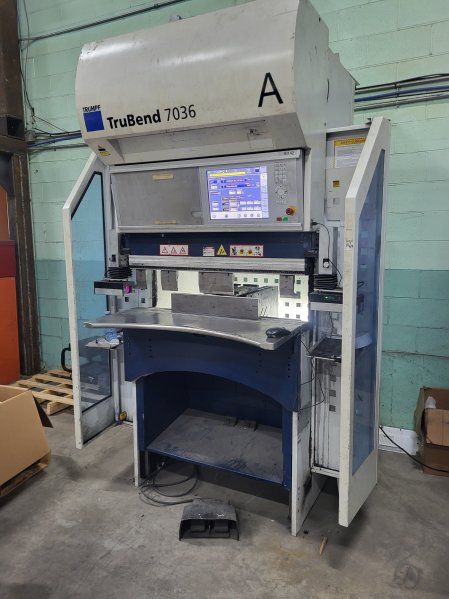

Trumpf TruBend 7036 40 TON

Features and Equipment
6-Axis Backgauge
Hydraulic Clamping

Press Force: 40 TON
Max. Bending Length: 40"
Width Between Columns: 37"
Max. Table/Beam Distance: 16.5"
Usable Installation Height: 12"
Throat Depth: 6"
Operating Height: 45"
Y Axis Stroke: 5"
Travel Path X Axis: 9"
Max. Gauge Area in X: 20"
Travel Path R Axis: 3"
Y Rapid Speed: 520 IPM
Y Working Speed: 59 IPM
Y Return Speed: 520 IPM
X Axis Speed: 2362 IPM
R Axis Speed: 780 IPM
Z Axis Speed: 2362 IPM
Y Axis Position Accuracy: 0.00008"
X Axis Position Accuracy: 0.0008"
R Axis Position Accuracy: 0.0008"
Control: TASC 6000
Connected Load: 6 kVA
Machine Dimensions (L x W x H): 71" x 52" x 94"
Machine Weight: 5732 lbs
