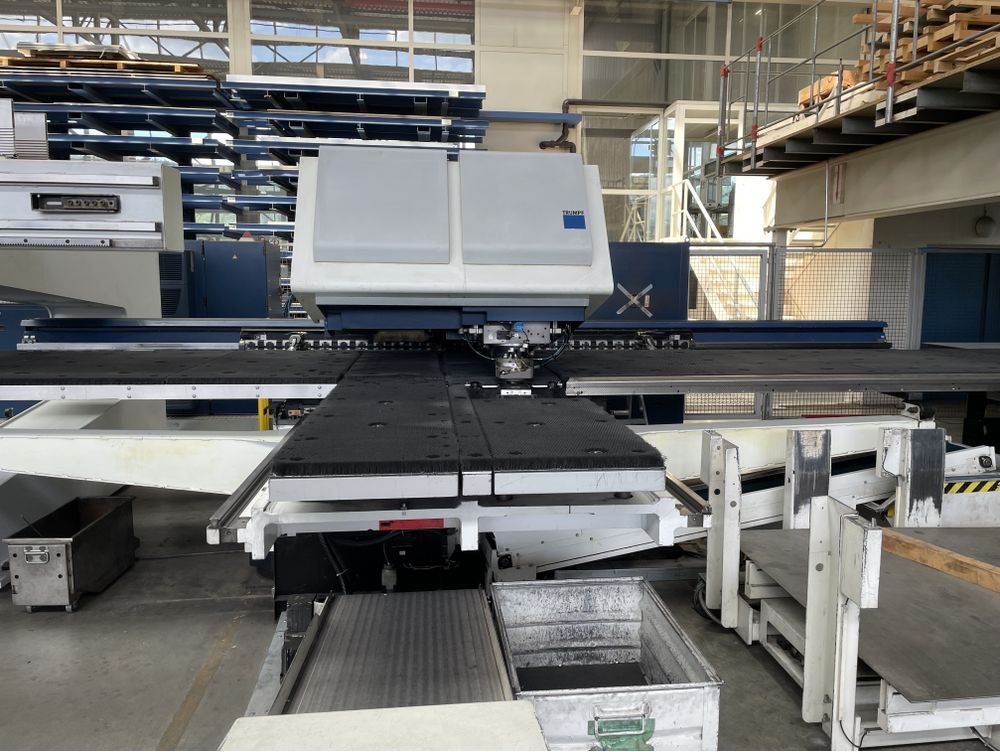

Trumpf TRUMATIC 6000 - 1600 (K05) (FMC) 22 t

Working area 4000 × 1500 mm
Laser rated output 3200 W
Punching force 22 t
Max sheet thickness 8 mm
Max material weight 285 kg
Control Siemens Sinumerik 840 D

Stable C-frame
Coordinate guide for high-precision machining
Maintenance-free 3-phase servo drives
Linear magazine with 22 tool stations and 2 clamps
Repositioning unit with programmable stripper
Footswitch for clamp closing
First index pin inside right
Ball-fitted tables
Two parts chutes 500 × 500 mm
Two good parts containers
Chip container
FocusLine
NitroLine
FastLine
FlyLine
Slag cone detection
Ejection cylinder for laser parts
Laser TruFlow 3200 with LensLine and optimized standby mode
Radio-frequency excitation
Chiller unit
Laser control TASC
Encapsulated beam delivery
Lens cutting head with 170 mm focal length
Universal cutting head quick-change device UTI
ControlLine
Electro-hydraulic punching head
Rotatable single tool adapter
Programmable presser foot with selectable force
Tool length compensation
Spray lubrication for punches
Vacuum slug removal
Fill level calculation in die base
Punch stroke rate counter
Thread stroke rate counter
Monitoring of tapping and lubrication fill level
Bosch Rexroth IndraMotion MTX control base
Control panel with 17" TFT touch screen
NC program management
Integrated technology data
Integrated e-shop
Programmable cutting gas pressure
Auto-shutdown with wake-up mode
Production plan
USB interface
RJ45 network connection
CE marking
Two-beam light barriers
Monitoring system for gas pressure temperature and cooling water
Rapid hydraulic shutdown
Laser guard against scattered radiation
Compact dust extractor
Function MultiTool
Function MultiShear
Function MultiBend
Function Tapping
Function Marking rapid beading
Function engraving
Function deburring and roller technology
Function SoftPunch
Adaptive stroke calibration
StripLine
Die spray lubrication with fill level monitoring
Smart Punch Monitoring
Descending die
Additional clamp
Automatic clamp closing
Repositioning cylinders
Anti-vibration installation
Chip conveyor with tilt container
Brush tables with loading and unloading aid
Blow-out device for small parts
Sheet collision detection
Conveyor belt laser station with parts container
SheetMaster loading station 4000 × 1500 mm
SheetMaster unloading pedestal 4000 × 1500 mm
SheetMaster parts loading minimum 600 × 350 mm
Suction frame 4000 × 1500 mm
Peeler cup and suction plate module
Vacuum sensor for each suction cup
Sheet thickness sensor for double sheet check
Support tables left and right brush version
Peeling system with positioning aid oversize 4000 × 1500 mm
Unloading monitoring laser parts
Chain conveyor with four pallets lengthwise
GripMaster scissor table 400 mm
GripMaster tiltable scrap skeleton pallet
GripMaster skeleton grippers with sensor
