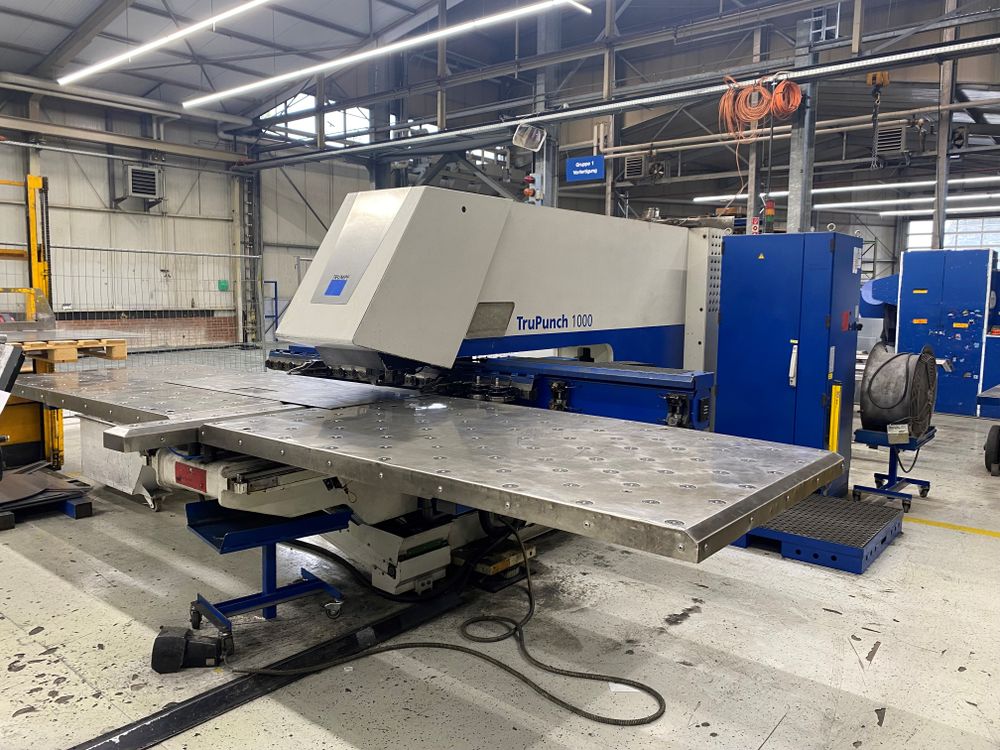

Trumpf TruPunch 1000 16.5 t

Working area: 2070 x 1280 mm
Punching force: 16.5 t
Control: BOSCH PNC-P
Max sheet thickness: 6.4 mm
Max material weight: 150 kg

Stable C-frame for easy access
Coordinate guide for high-precision machining
Linear magazine with 15 tool stations
2 clamps
Drives with maintenance-free 3-phase servo motors
Repositioning unit with programmable stripper
Ball tables
Parts chute 180 x 150 mm
Swarf bucket
Hydraulic punching head
Rotatable single tool adapter
360° rotation of all tools
Programmable presser foot
Tool length compensation
Spray lubrication for punches
Vacuum slug removal
Forming
Controller based on Bosch PNC-P
15" TFT color touch screen
Online help
Diagnostic functions
Integrated USB interface
RJ45 network connection
CE marking
Light barriers
Rapid hydraulic shutdown
Function Multitool
Function MultiBend
Function Tapping
Function marking / rapid beading
Function deburring and roller technology
Function SoftPunch
Programmable support table
Sensor for part chute
Installation on air cushions
Chip conveyor with tilt container
2nd stop pin
