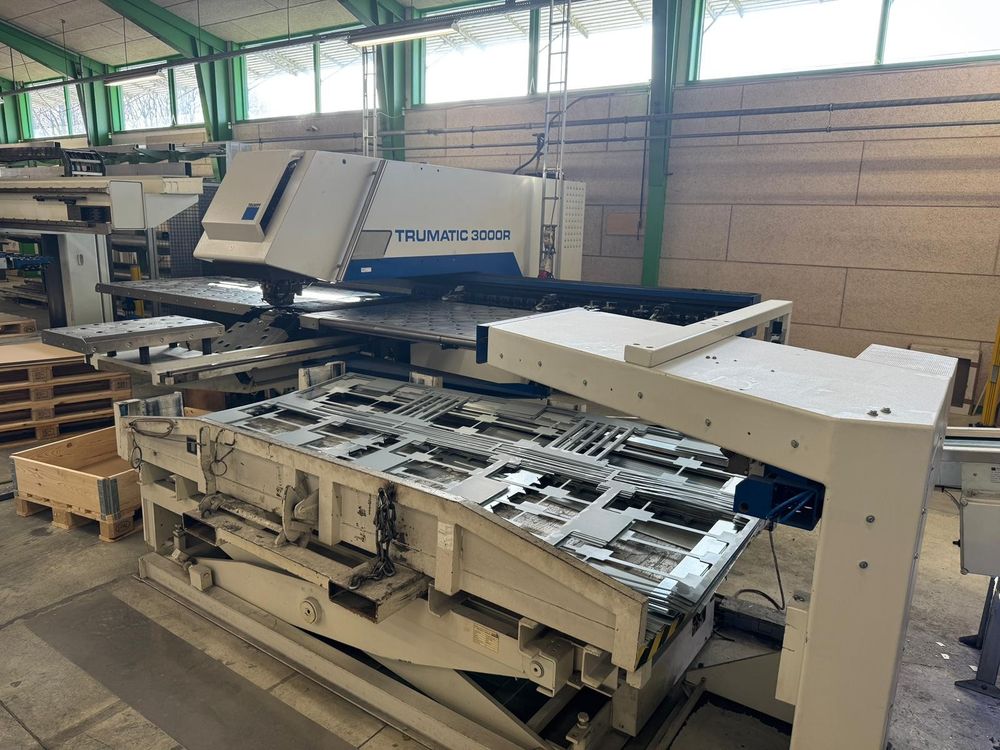

Trumpf TruPunch 3000 - 1300 (S06) (FMC) 18 to

Punching force: 18 to
Working area: 2550 x 1280 mm
Control: Bosch PNC-P
Max sheet thickness: 6.4 mm
Max material weight: 150 kg

Stable C-frame design
High-precision coordinate guide system
Linear magazine with 19 tool stations
2 clamp system
Maintenance-free drive system
Repositioning device with programmable presser foot
Parts chute 500 x 500 mm
Good parts container
Chip conveyor
Automatic shutdown system

Electro-hydraulic punching head
Rotatable single tool adapter
360° tool rotation capability
Programmable presser foot
Tool length compensation
Punch spray lubrication system
Vacuum slug removal system
Forming capability

Control system: Bosch PNC-B based open control
12.0” TFT color screen
Program management system
Production planning system
Online help system
Integrated technology data
Diagnostic functions

Shopfloor machine-oriented programming

Disc drive
RJ45 network connection

CE marking
Multi-beam light barriers
Rapid hydraulic shutdown system

MultiTool function
MultiShear function
MultiBend function
Tapping function
SoftPunch function

Additional clamp (1 unit)
Repositioning cylinders
Part chute sensor
Air cushion installation

Sheet collision detection system
MDE interface

SheetMaster automation system (2500 x 1250 mm)
Loading podium 2500 x 1250 mm
Unloading podium 2500 x 1250 mm
Suction frame system
Peeler cup system
Vacuum sensor
Central lubrication system
Double sheet detection
Automatic clamp closing system

GripMaster automation system (2500 x 1250 mm)
Sheet skeleton removal system
Automatic stacking of skeletons (300 mm)
Scissor table system
Tiltable scrap skeleton pallet
Sensor monitoring system
Simultaneous loading/unloading process

Additional scrap skeleton pallet (2500 x 1250 mm)
